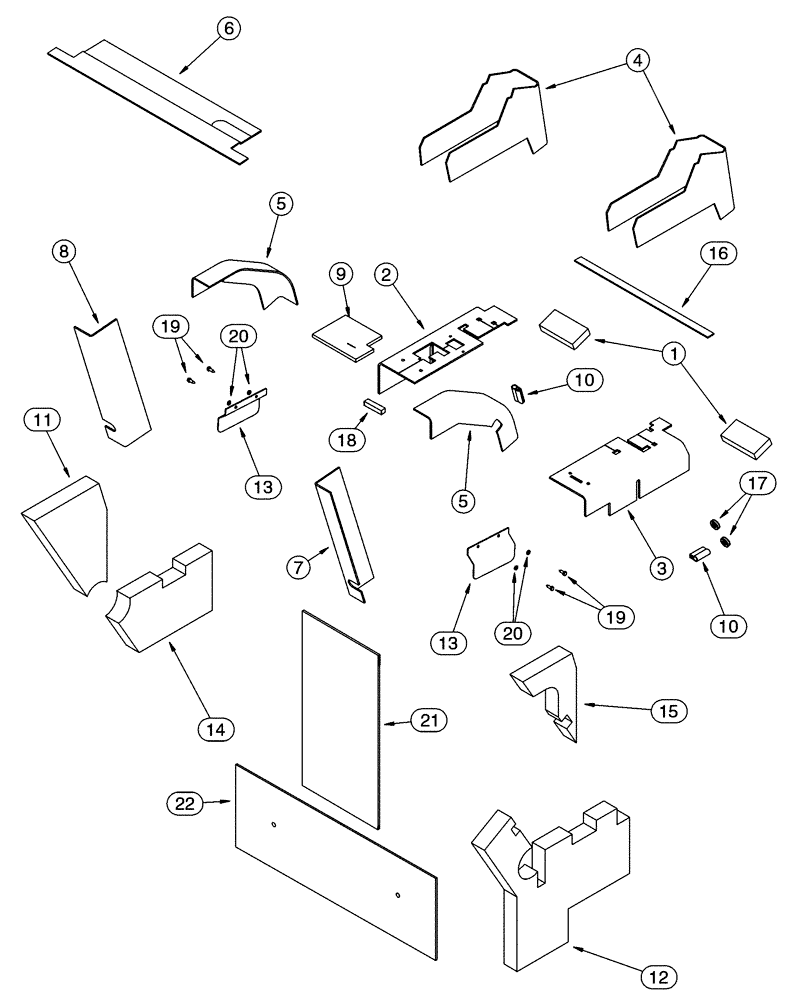

Запчасти Case 75XT (09-27) - SOUNDPROOFING - PANELS (EUROPE) (09) - CHASSIS

1

295007A1

SEAL

135 mm (5-3/8 inch), Console

2шт.

2

308877A1

PAD

Console Barrier, Left Hand, If Equipped

1шт.

3

308879A1

PAD

Console Barrier, Right Hand, If Equipped

1шт.

4

308917A1

PAD

Console

2шт.

5

309011A1

SHEET

Upper Corner

2шт.

6

309701A1

SHEET

Hood Extension

1шт.

7

309702A1

SHEET

Extension, Right Hand

1шт.

8

309703A1

SHEET

Extension, Left Hand

1шт.

9

311222A1

LARGE PLATE

PLATE, LARGE Loader Lock Barrier

1шт.

10

311258A1

SEAL

50 mm (2 inch), Floor Plate

2шт.

11

311341A1

INSULATOR

Engine Compartment, Left Hand Upper

1шт.

12

311342A1

INSULATOR

Engine Compartment, Right Hand Lower

1шт.

13

311412A1

SHEET

Overlap Extension

2шт.

14

311641A1

INSULATOR

Engine Compartment, Left Hand Lower

1шт.

15

311642A1

INSULATOR

Engine Compartment, Right Hand Upper

1шт.

16

311869A1

BAND

520 mm (20-1/2 inch), Floor Plate, If Equipped

1шт.

17

313231A1

BAND

30 mm (1-1/4 inch), Cable Seal, If Equipped

2шт.

18

313278A1

BAND

50 mm (2 inch), Lock Slot Cover, If Equipped

1шт.

19

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

M6,3 st x 19

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

318165A1

INSULATOR

Upper

1шт.

22

318166A1

INSULATOR

Lower

1шт.
