(09-23) - HOOD - WITHOUT SOUNDPROOFING (NORTH AMERICA)

Запчасти Case 75XT (09-23) - HOOD - WITHOUT SOUNDPROOFING (NORTH AMERICA) (09) - CHASSIS

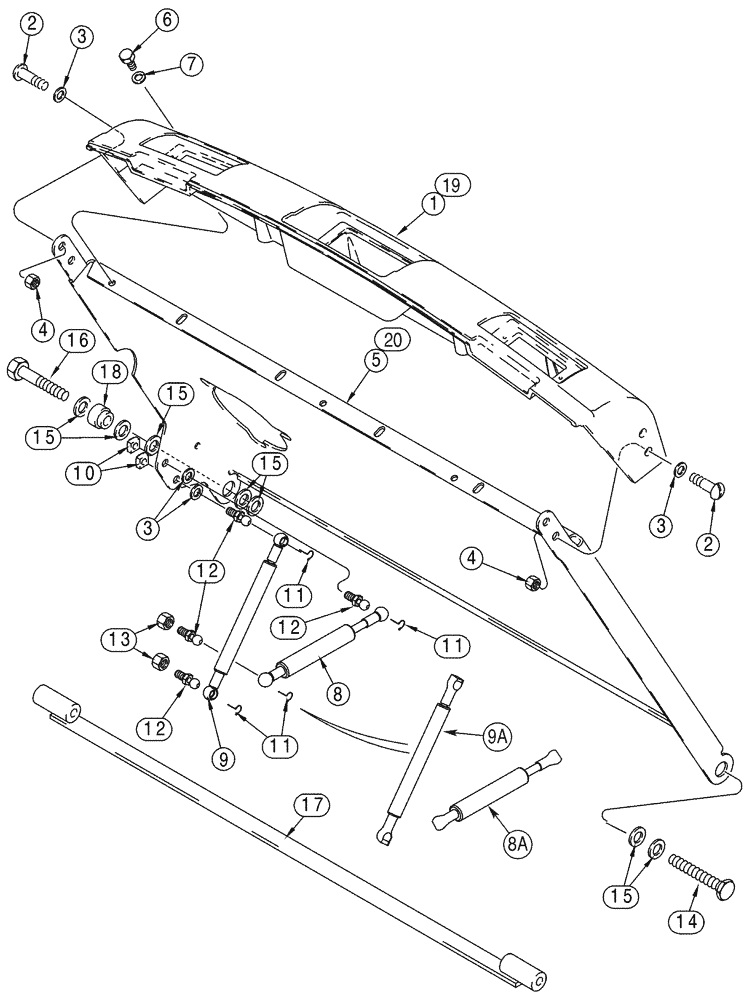

Схема запчастей Case 75XT - (09-23) - HOOD - WITHOUT SOUNDPROOFING (NORTH AMERICA) (09) - CHASSIS
4
6
4
13
12
11
15
15
19
3
9
8a
3
11
15
1
2
12
17
11
12
2
3
20
9a
10
7
5
8
14
18
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

254327A1

COWL

Includes 1 - 10, 12, 13, Tan, If Used

1шт.

1

186585A1

COWL

Upper Rear, Tan

1шт.

2

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

M8 x 20

4шт.

4

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

5

283079A1

COWL

Tan

1шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

248069A1

CYLINDER ASSY.

38 mm strk, Hood, No Longer Available, Order 400473A1, REF 8A

1шт.

8a

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

38 mm strk, Hood

1шт.

9

251360A1

CYLINDER ASSY.

76 mm strk, Hood, No Longer Available, Order 400471A1, REF 9A

1шт.

9a

400471A1

DAMPER

76 mm strk, Hood

1шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

11

254307A1

CLIP

Use With 248069A1, 251360A1

4шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

4шт.

13

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

16

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

17

294450A1

BAR

1шт.

18

284794A1

SPACER

1шт.

426789A1

HOOD ASSY.

Includes 2 - 4, 6, 7, 8A, 9A, 10, 12, 13, 19, 20, Gray, If Used

1шт.

19

426787A1

COWLING

Upper Rear, Gray

1шт.

20

426791A1

PLATE

Gray

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

7шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
