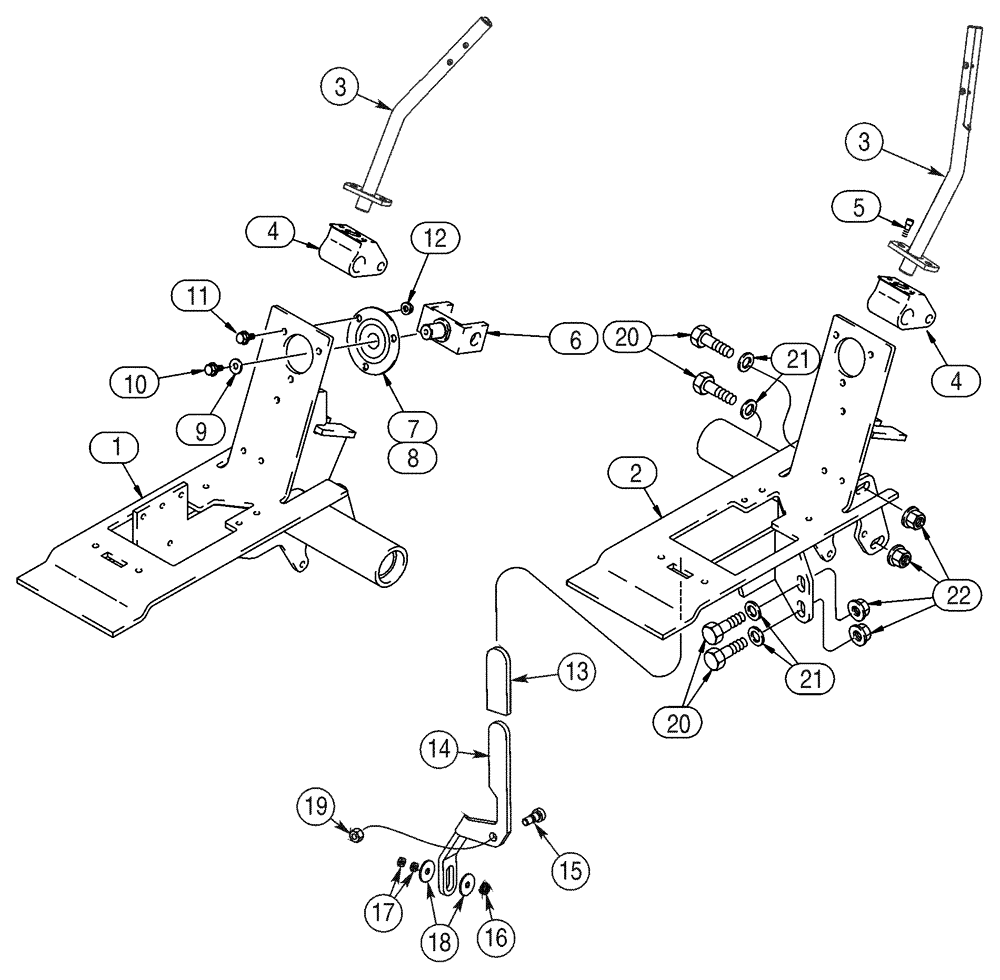

Запчасти Case 75XT (09-14) - CONTROLS - LOADER AND GROUND DRIVE (09) - CHASSIS

Models Without Foot Controls

1шт.

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

186308A2

SUPPORT

Left Hand

1шт.

2

179492A5

SUPPORT

Right Hand

1шт.

3

275024A1

LEVER

Without Grab Handle

2шт.

4

238357A3

PIVOT

2шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

6

237772A1

SUPPORT

2шт.

7

112380A1

BEARING ASSY

Incl 24

4шт.

8

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

1шт.

9

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

10

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

2шт.

11

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

13

D126613

HANDLE

1шт.

14

418663A2

LEVER

1шт.

15

121-251

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

16

418585A1

COIL SPRING

1шт.

17

225-14210

NUT,#10-32

2шт.

18

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

19

230-4215

NUT,5/16"-18, GA

1шт.

20

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

10шт.

22

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

23

308877A1

PAD

Left Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

24

313278A1

BAND

50 mm (2 inch), Lock Slot Cover, Models With Deluxe Heater and Air Conditioning

1шт.

25

308879A1

PAD

Right Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

26

313323A1

SEAL

Console, Models With Deluxe Heater and Air Conditioning

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.
