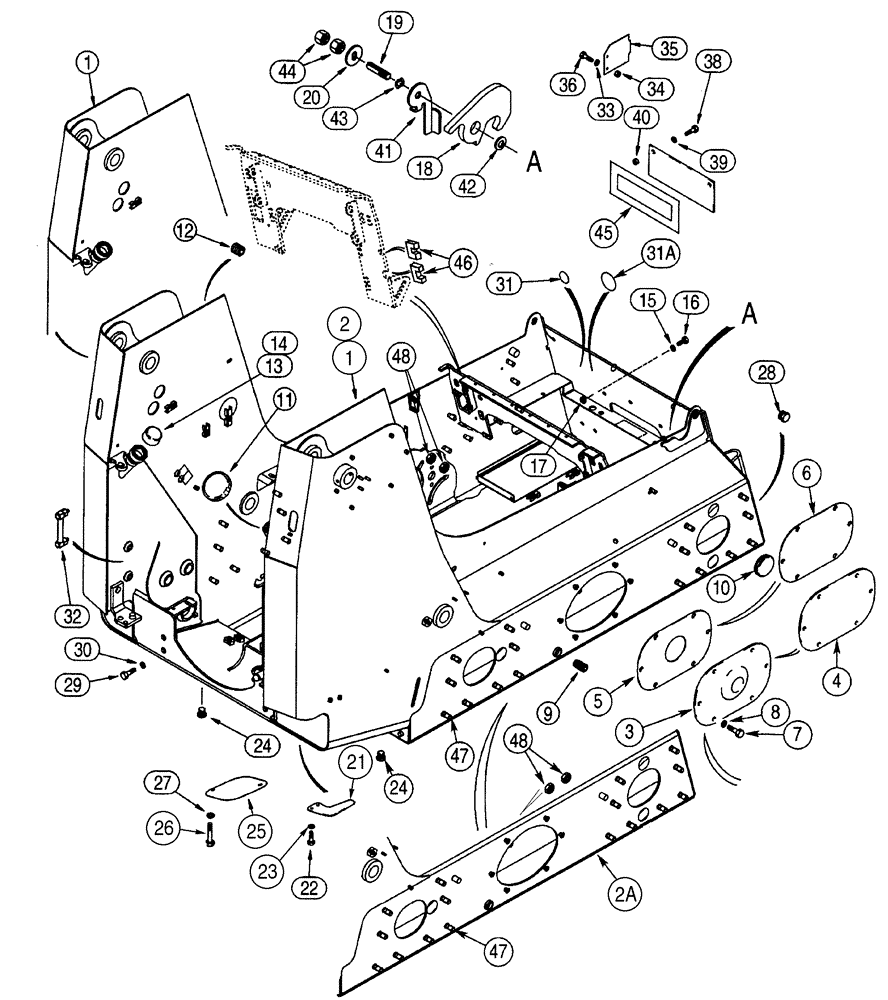

Запчасти Case 75XT (09-09) - CHASSIS (09) - CHASSIS

1

236340A2

CHASSIS

Models With Pin-Type Brake, May Or May Not Have Lift Slot, If Used, - JAF0318181

1шт.

2

389834A2

FRAME

Models With Hydraulic Actuated Brake, Replaces 389834A1, Order From Machinery Price List, If Used, North American Models JAF0318182 - JAF0318921, European Models -JAF0352168

1шт.

2a

427294A1

Order From Machinery Price List, If Used, North American Models JAF0318922-, European Models JAF0352169-

1шт.

3

311539A1

LARGE PLATE

PLATE, LARGE

2шт.

4

139754A1

LARGE PLATE

PLATE, LARGE Models With Chassis 389834A1, 389834A2

2шт.

5

311538A1

GASKET

2шт.

6

195402A1

GASKET

Models With Chassis 389834A1, 389834A2

2шт.

7

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Replaces 627-12030

12шт.

8

254547A1

PACKING RING

12шт.

9

217-494

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

3/4 PT

2шт.

10

220061A2

PLUG

3 in, Axle Access

4шт.

11

D93757

CAP

Fuel Filler, If Used

1шт.

11

H436887

CAP

Fuel Filler, If Used

1шт.

12

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

Hydraulic Reservoir

1шт.

13

257448A1

CAP

Oil Filler, Includes 14

1шт.

14

292259A1

SEAL

Filler Cap, Not Illustrated

1шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Optional Equipment Mounting

8шт.

17

832-41310

NUT,M10 x 1.5, Cl 10

8шт.

18

294910A1

LATCH

ROPS

1шт.

19

294943A1

STUD

1шт.

20

294967A1

WASHER

1шт.

21

189422A1

COVER

Cover

2шт.

22

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

24

86625135

PLUG,1" - 11-1/2 NPT

2шт.

25

247609A1

COVER

3шт.

26

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

28

A50096

VALVE

If Used

2шт.

29

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

30

232287A1

PACKING RING

2шт.

31

299274A1

COVER

25 mm (1 in)

1шт.

31a

311212A1

COVER

70 mm dia, Models with Deluxe Heater

1шт.

32

H435669

GAUGE

1шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

34

833-40006

SPRING NUT,M6, U

M6

2шт.

35

279409A2

SHEET

If Used

1шт.

36

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

37

242094A1

PLATE ASSY.

1шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

40

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

41

294911A1

HOOK

1шт.

42

495-11081

WASHER,3/4", SAE

1шт.

43

278332A1

SPRING WASHER

1шт.

44

825-1410

NUT,M10, Cl 8

Replaces 825-1010

2шт.

45

313322A1

SEAL

Cover Plate, Models with Deluxe Heater

1шт.

46

313231A1

BAND

30 mm (1-1/4 inch), Cable, Models with Deluxe Heater

2шт.

47

277450A1

STUD,M16 x 2 x 40mm, Cl 10.9

32шт.

48

192724A1

NUT

12шт.

390353A1

KIT

Service, Frame, Includes 2, 6, 7, 8, 10, 35, 40, 41, Also Includes 09-34, Ref 2, 04-08, Ref 18 - 21

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

39

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
