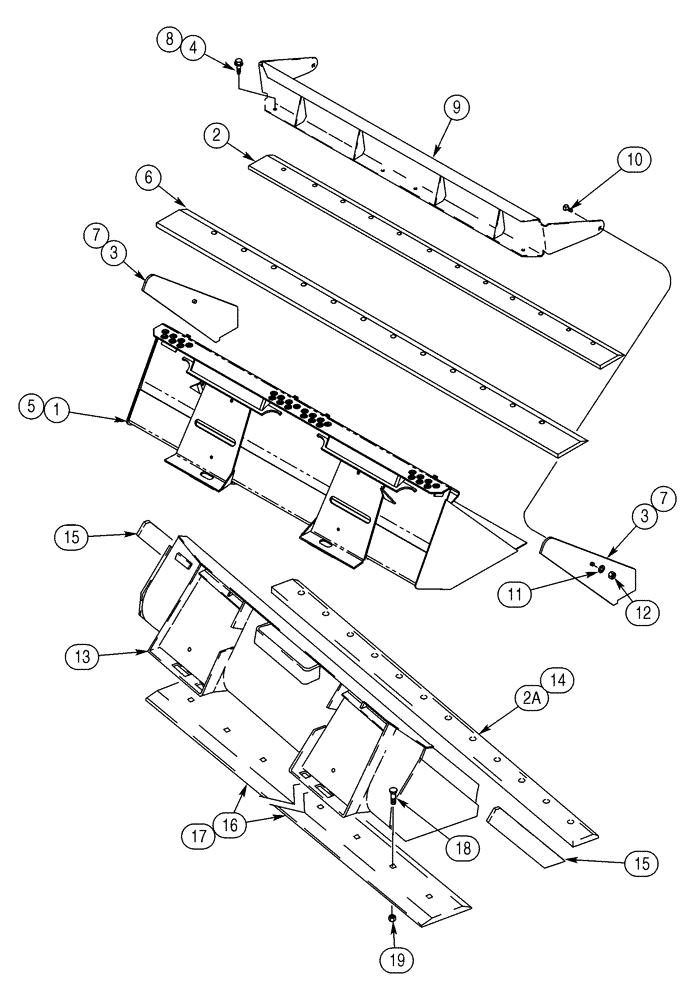

Запчасти Case 75XT (09-06) - BUCKETS - LOADER (09) - CHASSIS

1860 mm (73 in) Wide Bucket

1шт.

1

244554A2

ATTACHMENT

1860 mm (73 in), Machinery Item, Includes 2 - 4

1шт.

2

245106A1

EDGE, CUTTING

Welded On, No Longer Used, Order H438919, REF 2A

1шт.

2a

H438919

EDGE, CUTTING

152 mm (6 in), Welded On

1шт.

3

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

Heavy Duty

1шт.

5

245078A2

BUCKET

1860 mm (73 in), Machinery Item, Includes 6 - 8

1шт.

6

245108A1

EDGE, CUTTING

Welded On

1шт.

7

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

8

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

Extension

1шт.

9

252645A2

HINGED SIDE

Used With 244554A2, 245078A2

1шт.

10

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

12

829-1412

NUT,M12, Cl 10.9

2шт.

1860 mm (73 in) Wide Bucket

1шт.

Short Lip

1шт.

13

H674862

BUCKET

1854 mm (73 in), Machinery Item, Includes 14, 15

1шт.

14

H438919

EDGE, CUTTING

152 mm (6 in), Welded On

1шт.

15

H438259

EDGE

Side, Welded On

2шт.

Bolt-On Cutting Edge

1шт.

16

294681A1

EDGE, CUTTING

1860 mm (73 in), Used With 244554A2, 245078A2

1шт.

17

H439029

EDGE, CUTTING

152 mm (6 in) wide, Used With H674862

1шт.

18

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

12шт.

19

329-1010

NUT,5/8"-11, G8

12шт.
