Запчасти Case 75XT (09-03) - ARM, LOADER H-FRAME (09) - CHASSIS

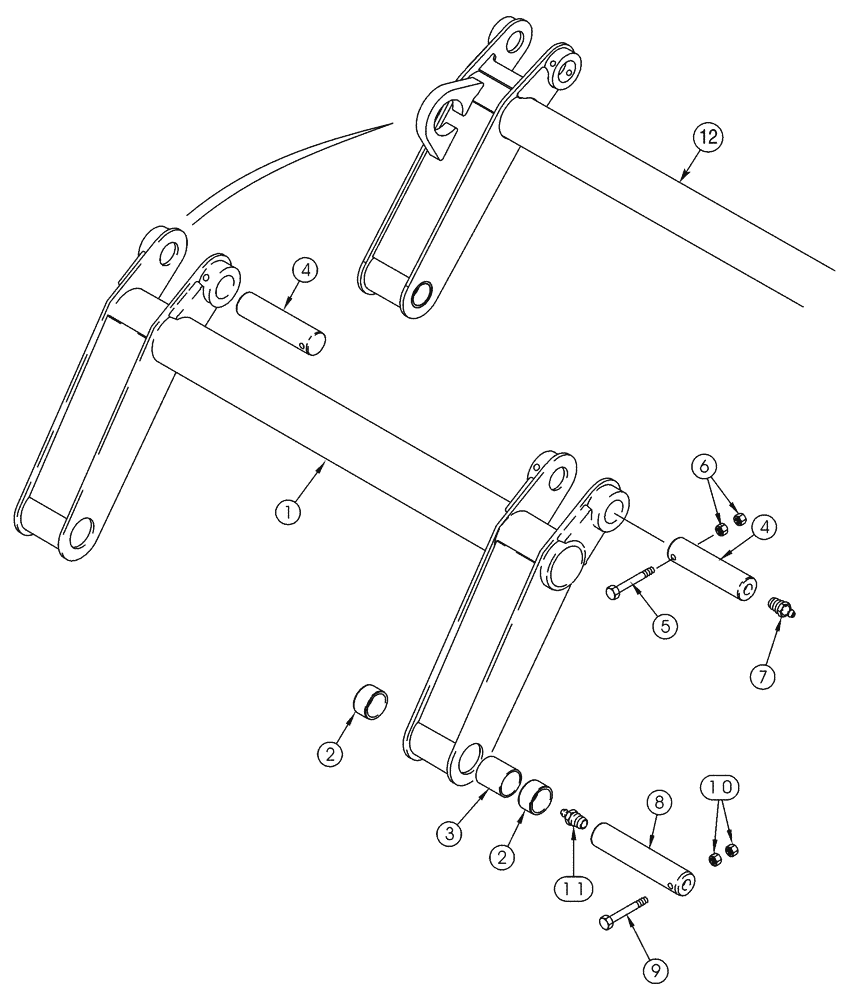

Схема запчастей Case 75XT - (09-03) - ARM, LOADER H-FRAME (09) - CHASSIS
12
7
2
3
9
4
1
10
6
2
5
4
11
8

Артикул

Название

Примечание

Количество

1

277539A2

FRAME ASSY

Includes 2, 3

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

3

278076A1

SPACER

2шт.

4

139086A1

PIN,45mm OD x 176mm L

2шт.

5

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

6

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

139087A1

PIN,45mm OD x 212mm L

2шт.

9

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

12

402948A1

FRAME ASSY

Models with Deluxe Heater, Includes Lugs, Which Are Not Serviced Separately, Includes 277539A2, Ref 1

1шт.

Выбрано товаров: 12
