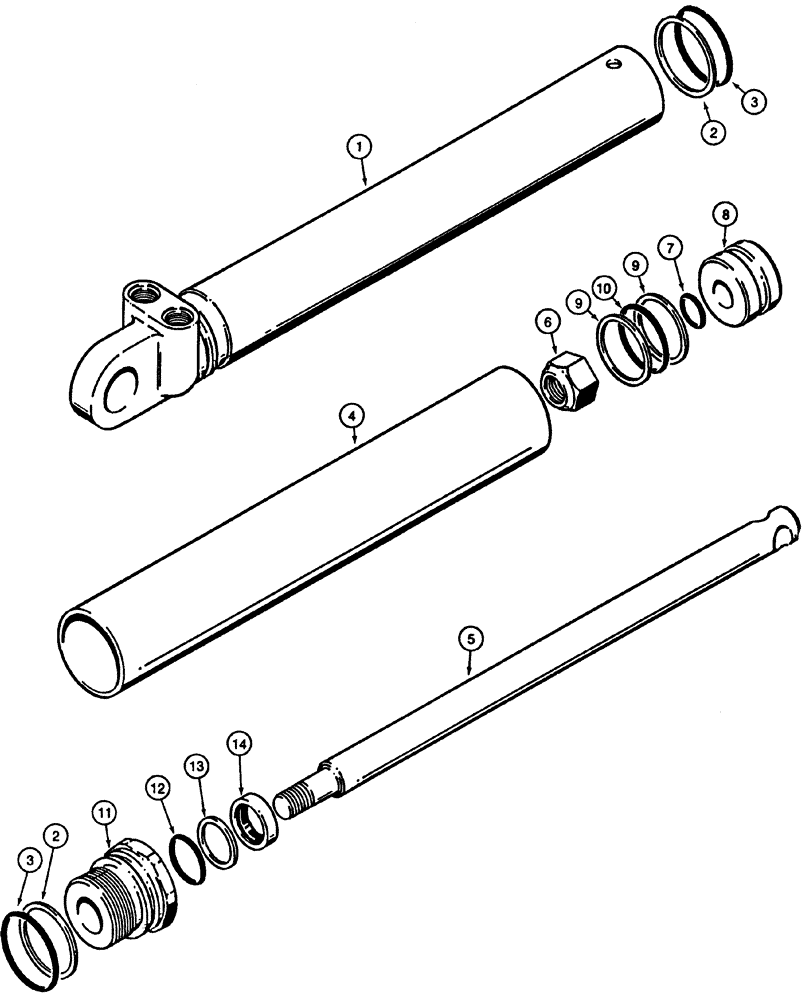

Запчасти Case 75XT (08-58) - CYLINDER ASSY - STABILIZER, VERTICAL (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

H514117

CYLINDER BLOCK

51 ID x 305 mm strk, Stabilizer, Consists Of 1-14

2шт.

1

H52654

HYD CYL SLEEVE

Outer

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

3

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

4

H52662

HYD CYL SLEEVE

Inner

1шт.

5

H52688

ROD

1шт.

6

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

1шт.

7

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

8

H52670

PISTON ASSY.

1шт.

9

H754614

WASHER

2шт.

10

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

11

H52696

BEARING

1шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

H220475

WIPER SEAL

Replaces H746297

1шт.

H52704

KIT

Consists Of 2, 3, 7, 9, 10, 12, 13

1шт.
