(08-57) - CYLINDER ASSY - STABILIZER, FOLD DOWN (NORTH AMERICA)

Запчасти Case 75XT (08-57) - CYLINDER ASSY - STABILIZER, FOLD DOWN (NORTH AMERICA) (08) - HYDRAULICS

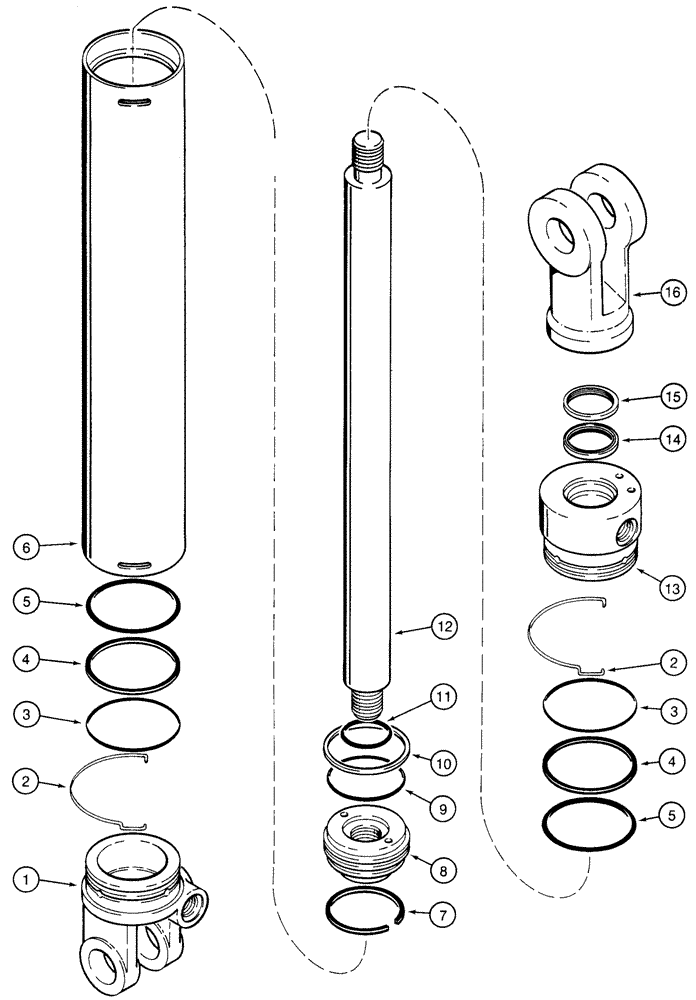

Схема запчастей Case 75XT - (08-57) - CYLINDER ASSY - STABILIZER, FOLD DOWN (NORTH AMERICA) (08) - HYDRAULICS
4
7
3
12
10
5
2
13
2
8
3
11
6
9
14
16
4
1
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D125 Backhoe

1шт.

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

76 ID x 406 mm strk, Stabilizer, Consists Of 1 - 17

2шт.

1

102681A1

JACK HEAD

1шт.

2

H436693

LOCKING RING

2шт.

3

H436690

SEAL

2шт.

4

H745760

WASHER

2шт.

5

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

6

102683A1

TUBE

1шт.

7

H436691

GASKET

1шт.

8

102682A1

PISTON

1шт.

9

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

10

H120188

RING

1шт.

11

T52486

O-RING

1шт.

12

H436686

PISTON ROD

1шт.

13

102686A1

GLAND

1шт.

14

H436694

SEAL

1шт.

15

H436692

SEAL

1шт.

16

102685A1

JACK HEAD

1шт.

17

H436689

COVER

Not Illustrated, No Longer Required

1шт.

H673837

GASKET KIT

Consists Of 2 - 5, 7, 9 - 11, 14, 15, 17

1шт.

403642A1

SEAL

Seal and O-ring, Cylinders With Wide Groove Pistons, Approximately 1/4 Inch Wide

1шт.
