Запчасти Case 75XT (08-55) - CYLINDER ASSY - BACKHOE DIPPER (NORTH AMERICA) (08) - HYDRAULICS

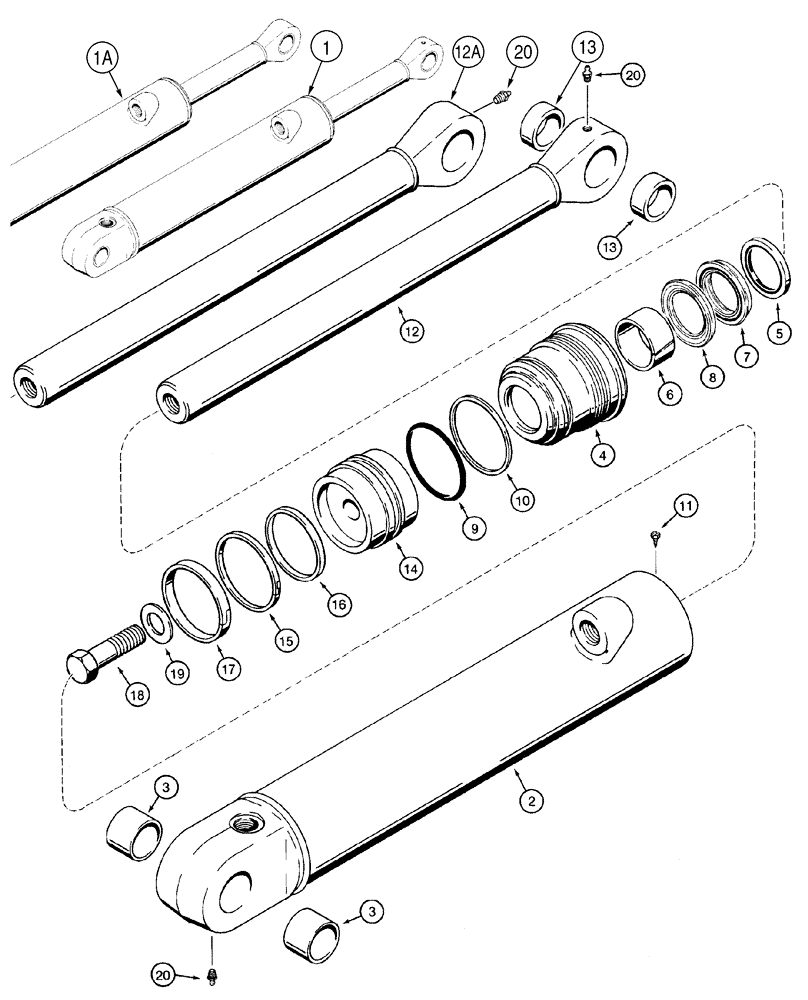

Схема запчастей Case 75XT - (08-55) - CYLINDER ASSY - BACKHOE DIPPER (NORTH AMERICA) (08) - HYDRAULICS
20
4
8
3
1
12
13
2
7
11
5
6
10
17
20
20
15
18
16
9
3
1a
12a
19
13
14

Артикул

Название

Примечание

Количество

D125 Backhoe

1шт.

1

1346411C2

CYLINDER ASSY.

76 ID x 498 mm strk, Dipper, Consists Of 2 - 12, 13 - 20, No Longer Available, Order 1346411C3, REF 1A

1шт.

1a

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk, Dipper, Consists Of 2 - 11, 12A - 20

1шт.

1346412C1

TUBE

Consists Of 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

R10754

BUSHING

2шт.

NSS

NOT SOLD SEPARAT

Gland, Packing, Consists Of 4 - 10

1шт.

4

1346417C1

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346414C2

PISTON ROD

38 mm (1-1/2 in) dia, Consists Of 12, 13, No Longer Available, Order 1346414C3

1шт.

1346414C3

PISTON ROD

38 mm (1-1/2 in), Consists Of 12A, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Rod

1шт.

12a

NSS

NOT SOLD SEPARAT

Rod

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

14

1543369C1

PISTON

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

18

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Consists of 5 - 10, 15 - 17

1шт.

Выбрано товаров: 28
