Артикул
Название
Примечание
Количество

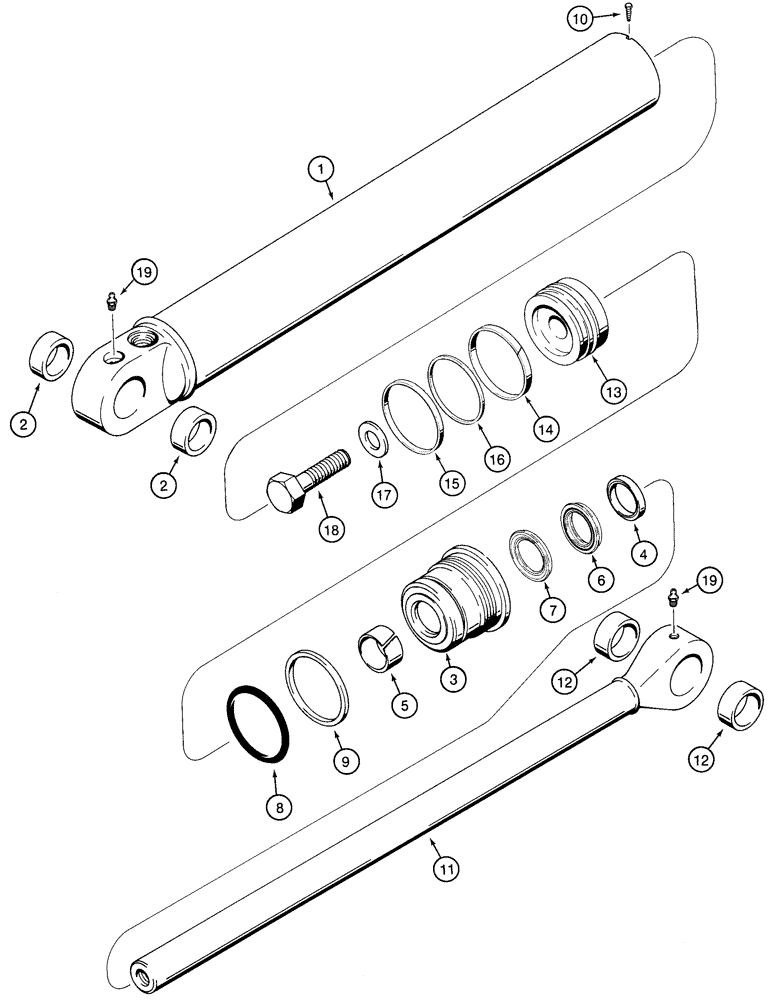

D125 Backhoe
1шт.
1346450C2
CYLINDER ASSY.
76 ID x 551 mm strk, Boom, Consists Of 1 - 19, No Longer Available, Order 305352A1, See Figure 08-54
1шт.
1346451C1
TUBE
Consists Of 1, 2
1шт.
1
NSS
NOT SOLD SEPARAT
Tube
1шт.
2
D30930
BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L
1-1/2 x 1-7/8 x 11/16
2шт.
NSS
NOT SOLD SEPARAT
Gland, Packing, Consists Of 3 - 9
1шт.
3
1346417C1
GLAND
1шт.
4
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
1шт.
5
G102424
BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L
1шт.
6
NSS
NOT SOLD SEPARAT
Seal, Order 1543256C1
1шт.
7
NSS
NOT SOLD SEPARAT
Seal, Order 1543256C1
1шт.
8
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
1шт.
9
G109298
RING,69.47mm ID x 75.57mm OD x 1.4mm Thk
1шт.
10
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
1шт.
1346455C2
PISTON ROD
38 mm (1-1/2 in) dia, Consists Of 11, 12
1шт.
11
NSS
NOT SOLD SEPARAT
Rod
1шт.
12
D30930
BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L
1-1/2 x 1-7/8 x 11/16
2шт.
13
G108518
PISTON
1шт.
17
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
1шт.
18
28-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
305352A1
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke
76 ID x 551 mm strk, Boom, Consists Of 1 - 19
1шт.
1346451C1
TUBE
Consists Of 1, 2
1шт.
1
NSS
NOT SOLD SEPARAT
Tube
1шт.
2
D30930
BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L
1-1/2 x 1-7/8 x 11/16
2шт.
NSS
NOT SOLD SEPARAT
Gland, Packing, Consists Of 3 - 9
1шт.
3
1346417C1
GLAND
1шт.
4
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
1шт.
5
G102424
BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L
1шт.
6
NSS
NOT SOLD SEPARAT
Seal, Order 1543256C1
1шт.
7
NSS
NOT SOLD SEPARAT
Seal, Order 1543256C1
1шт.
8
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
1шт.
9
G109298
RING,69.47mm ID x 75.57mm OD x 1.4mm Thk
1шт.
10
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
1шт.
305353A1
ROD ASSY.
38 mm (1-1/2 in) dia, Consists Of 11, 12
1шт.
11
NSS
NOT SOLD SEPARAT
Rod
1шт.
12
D30930
BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L
1-1/2 x 1-7/8 x 11/16
2шт.
13
305356A1
PISTON
1шт.
15
NSS
NOT SOLD SEPARAT
Seal, Order 1543256C1
1шт.
17
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
1шт.
18
28-1440
BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
Выбрано товаров: 49
