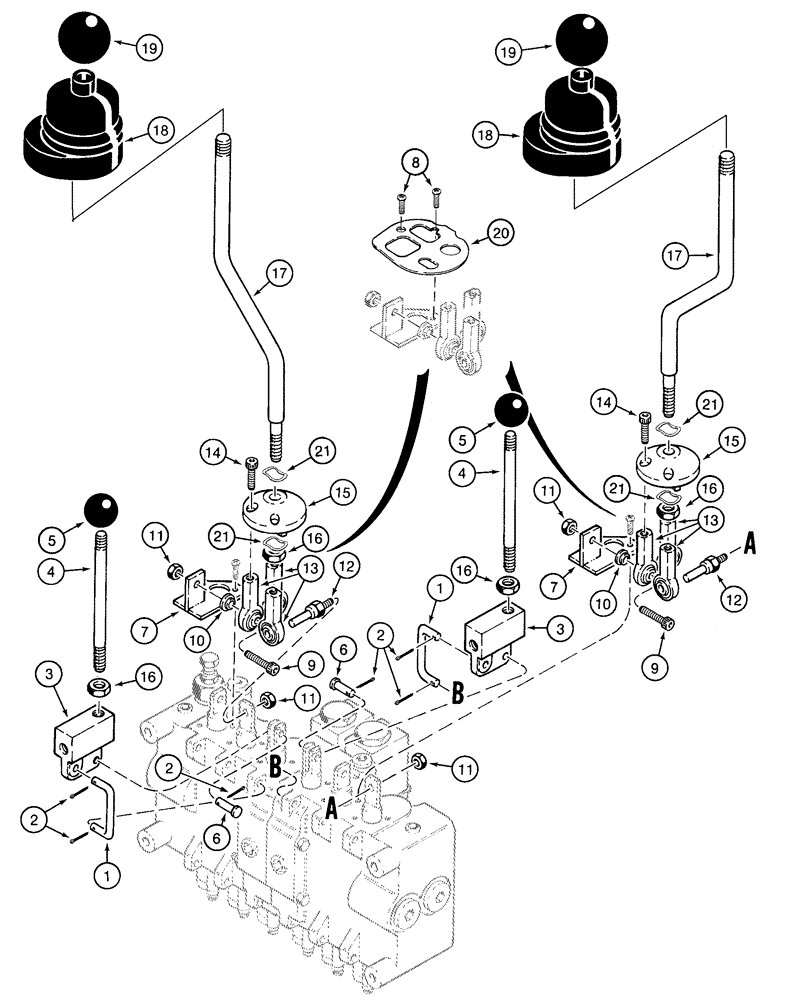

Запчасти Case 75XT (08-50) - VALVE, CONTROL - BACKHOE (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

Control Levers

1шт.

H674500

VALVE

Backhoe, Consists Of 1 - 21, Also Includes Figure 08-50 - 08-52

1шт.

1

H438042

ARM

2шт.

2

432-412

COTTER PIN,1/16" x 3/4"

6шт.

3

H438043

BLOCK ASSY.

2шт.

4

100406A1

LEVER

5-1/4

2шт.

5

H152207

BALL KNOB

2шт.

6

427-4077

CLEVIS PIN,1/4" x .770"

2шт.

7

H438950

LARGE PLATE

PLATE, LARGE

2шт.

8

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

4шт.

9

62-32516

HEX SOC SCREW,1/4"-28 x 1"

4шт.

10

H438035

SPACER

4шт.

11

H438943

JAM NUT

6шт.

12

H438038

STUD

2шт.

13

H438025

ROD

6шт.

14

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

6шт.

15

H438944

ADAPTER

2шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

17

H438022

LEVER

2шт.

18

H438946

PROTECTOR

2шт.

19

A23885

KNOB

2шт.

20

H438951

LARGE PLATE

PLATE, LARGE

2шт.

21

H438956

WASHER

4шт.
