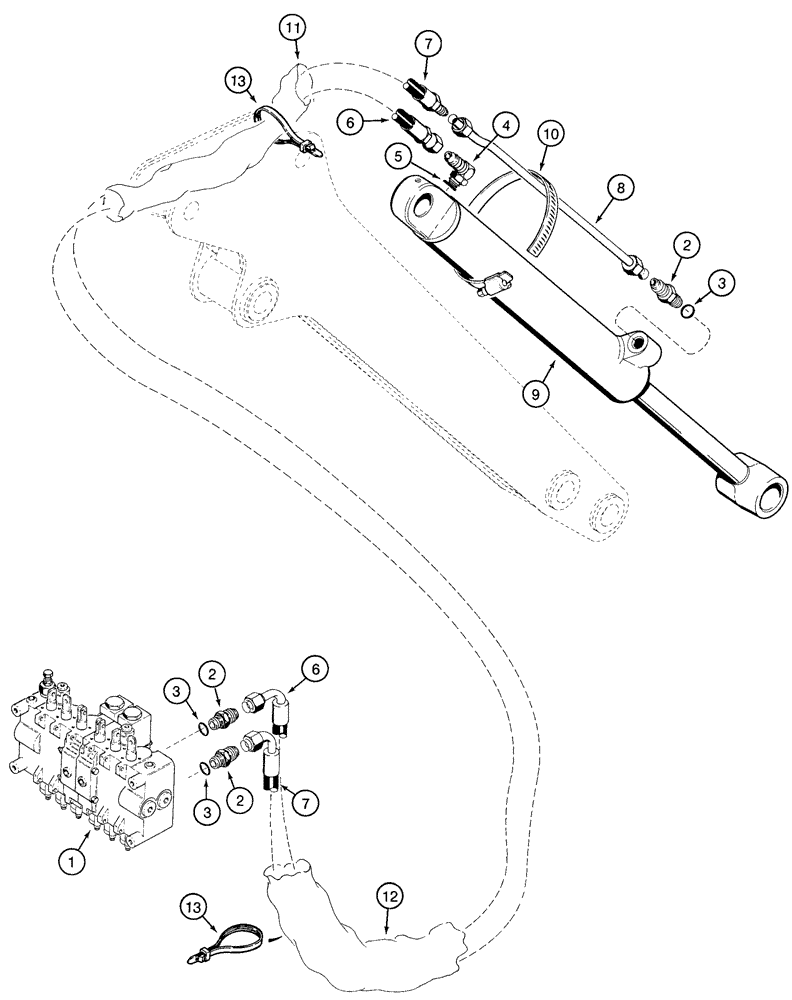

Запчасти Case 75XT (08-48) - HYDRAULIC SYSTEM - BACKHOE BUCKET CYLINDER (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

With Hoses at Control Valve

1шт.

1

H674500

VALVE

Backhoe, See Figure 08-50 - 08-52

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H438685

HOSE

3600 mm (141-7/8 in)

1шт.

7

H438227

HOSE

3700 mm (145-3/4 in)

1шт.

8

H674567

PIPE,12.7 mm OD x 597 mm L

1шт.

9

1346397C2

CYLINDER ASSY.

70 ID x 559 mm strk, Bucket, See Figure 08-56

1шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

1шт.

11

D132054

SLEEVE

1шт.

12

H439063

SLEEVE

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.
