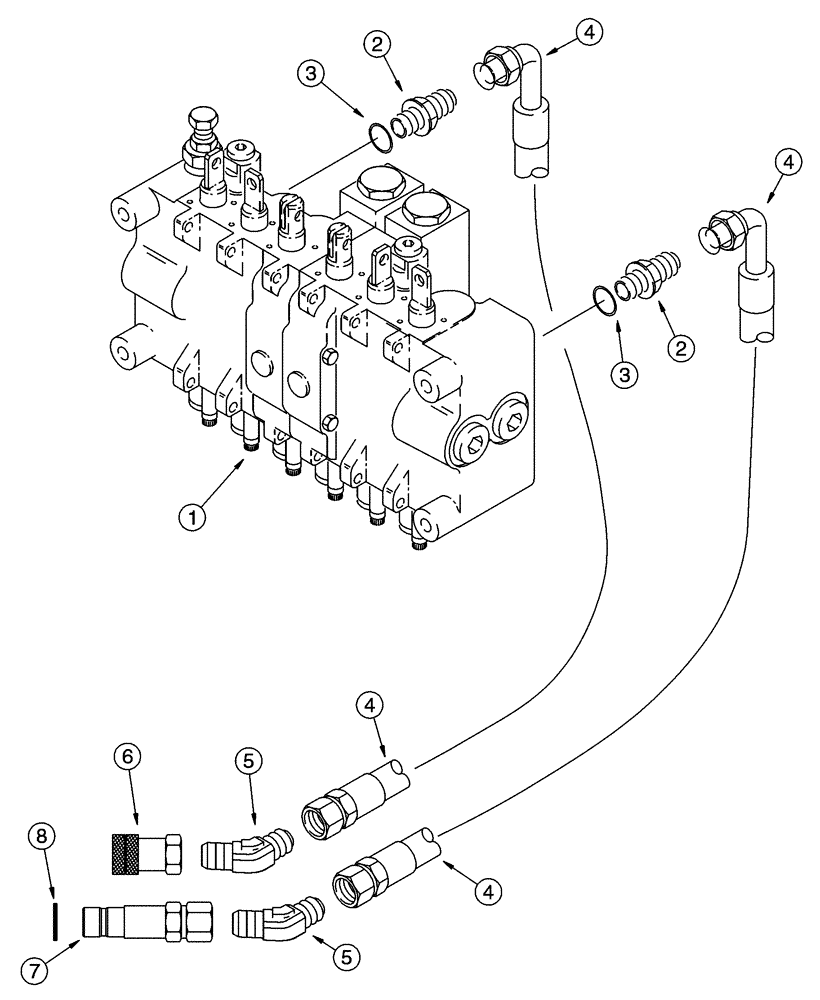

Запчасти Case 75XT (08-39) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

If Used

1шт.

1

H674500

VALVE

Backhoe, See Figure 08-50 - 08-52

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

254511A1

HOSE

2000 mm (78-3/4 in)

2шт.

5

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

6

143431A1

COUPLING, QUICK, FEM

Female, See Figure 08-25

1шт.

7

238243A1

COUPLING, BREAK AWAY

Male, Includes 8

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Order 185786A1

1шт.

185786A1

SET OF PARTS

Consists Of 8

1шт.
