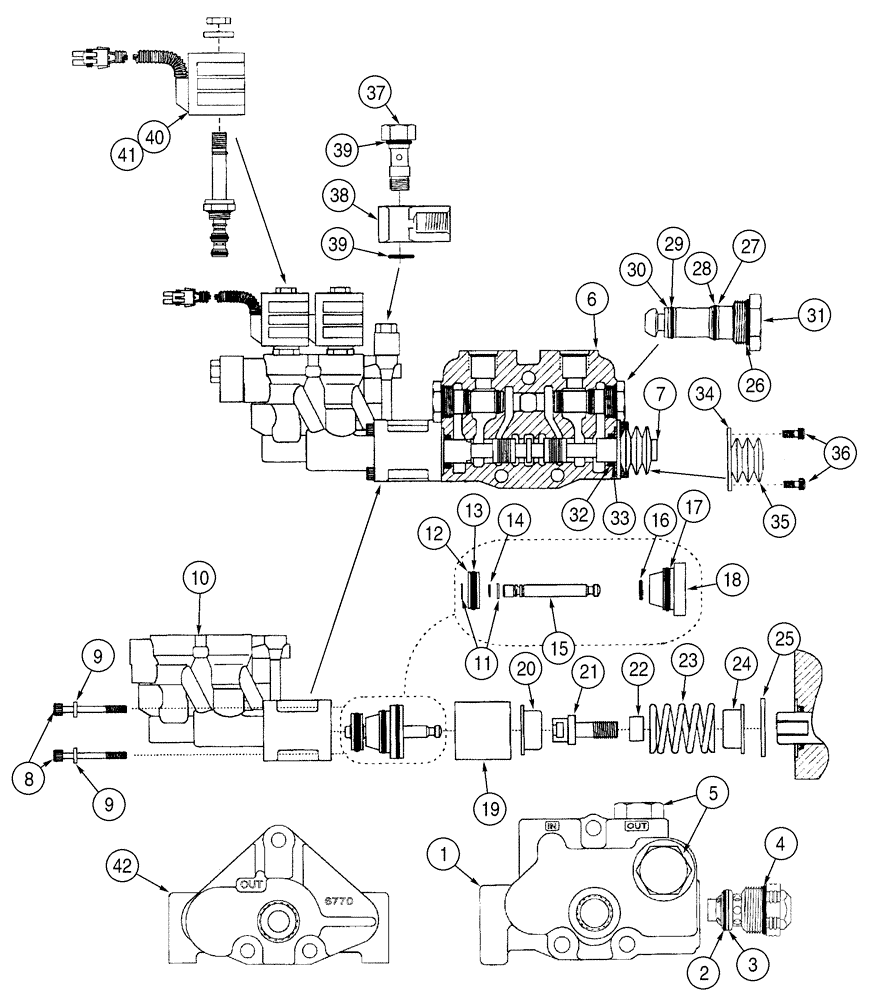

Запчасти Case 75XT (08-38) - VALVE ASSY, CONTROL - HIGH FLOW (08) - HYDRAULICS

372194A2

VALVE

High Flow, Consists Of 1 - 46

1шт.

419561A1

COVER ASSY

Inlet, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Cover

1шт.

419565A1

CARTRIDGE

Relief, Includes 348740A1

1шт.

348740A1

SEAL KIT

Plug Seal, Consists Of 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

2шт.

419562A1

ELEMENT

Consists Of 6 - 41

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

NSS

NOT SOLD SEPARAT

Spool

1шт.

419568A1

KIT

Solenoid Positioner, Consists Of 8 - 25

1шт.

8

419575A1

SCREW

4шт.

9

357162A1

PLATE

4шт.

10

NSS

NOT SOLD SEPARAT

Body

1шт.

419576A1

KIT

Actuator Piston, Consists Of 11 - 15

1шт.

419577A1

SEAL KIT

Positioner Seal, Consists Of 13, 14, 16, 17

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

12

NSS

NOT SOLD SEPARAT

Piston

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

419578A1

GUIDE

1шт.

19

419579A1

SLEEVE

1шт.

20

419580A1

COLLAR

1шт.

21

419581A1

SCREW

1шт.

22

419582A1

SPACER

1шт.

23

419583A1

SPRING

1шт.

24

419584A1

COLLAR

1шт.

25

419585A1

SEAL RETAINER

1шт.

L100937

PLUG

Load Check Plug, Consists Of 26 - 31

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

27

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

28

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

29

D88725

BACK-UP RING

2шт.

30

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Plug

1шт.

N8880

SEAL

Spool, Includes 32, 33

1шт.

32

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

33

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

348741A1

KIT

Kit, Consists Of 34 - 36

1шт.

34

357163A1

RETAINER

1шт.

35

357164A1

BOOT

1шт.

36

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

1/4 x 1/2

2шт.

419570A1

KIT

Consists Of 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

Fitting

1шт.

38

NSS

NOT SOLD SEPARAT

Collar

1шт.

39

419586A1

O-RING

2шт.

419573A1

KIT

Port A (Rear) Cartridge, Consists Of 40

1шт.

40

419587A1

KIT

1шт.

419574A1

KIT

Port B (Front) Cartridge, Consists Of 41

1шт.

41

419588A1

KIT

1шт.

42

419563A1

COVER

Outlet

1шт.

419564A1

KIT

Hardware, Consists Of 43, 44

1шт.

43

NSS

NOT SOLD SEPARAT

Screw, Not Illustrated

3шт.

44

425-106

NUT,3/8"-16, Cl 5

Not Illustrated

3шт.

S302092

SEAL KIT

Consists Of 45, 46

1шт.

45

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Not Illustrated

3шт.

46

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Not Illustrated

2шт.
