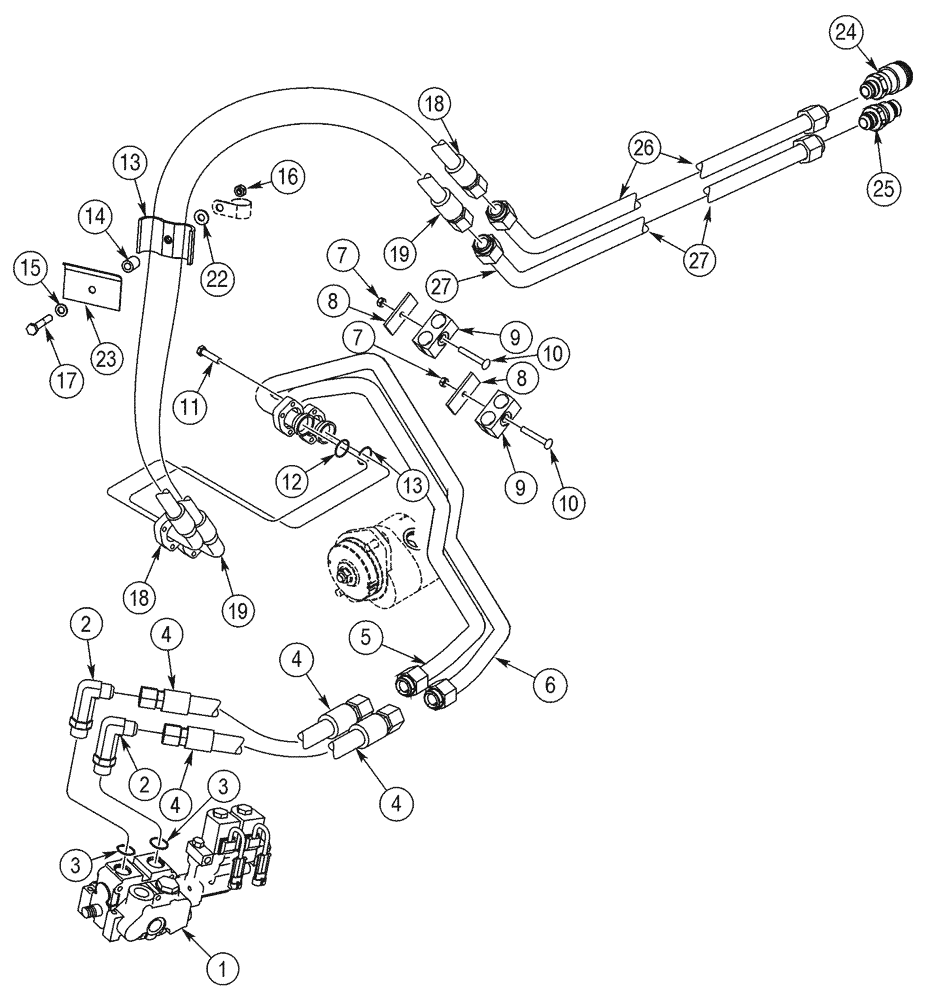

Запчасти Case 75XT (08-35) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

, Serial Range: Valve-Couplings

1шт.

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

372194A2

VALVE

See Figure 08-38

1шт.

2

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/6 fl x Or, Includes 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

401289A1

HOSE ASSY.

345 mm (13-5/8 in), Loop Valve

2шт.

5

401281A2

TUBE

Chassis

1шт.

6

401283A3

TUBE

Chassis

1шт.

7

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

8

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

9

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

2шт.

10

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

11

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

13

276433A1

CLAMP

1шт.

14

256690A1

SPACER

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

17

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

18

401287A1

HOSE ASSY.

1520 mm (59-7/8 in), Loader Arm

1шт.

19

401286A1

HOSE ASSY.,19.05mm ID x 1600mm L

1600 mm (63 in), Loop, Loader Arm

1шт.

20

413421A1

TUBE

Loop, Loader Arm

1шт.

21

413419A1

TUBE

Loop, Loader Arm

1шт.

23

436500A1

PLATE

1шт.

24

395267A1

COUPLING

5/8 in, Female Quick Disconnect

1шт.

25

395268A1

COUPLING

Male Quick Disconnect

1шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
