Запчасти Case 75XT (08-32) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

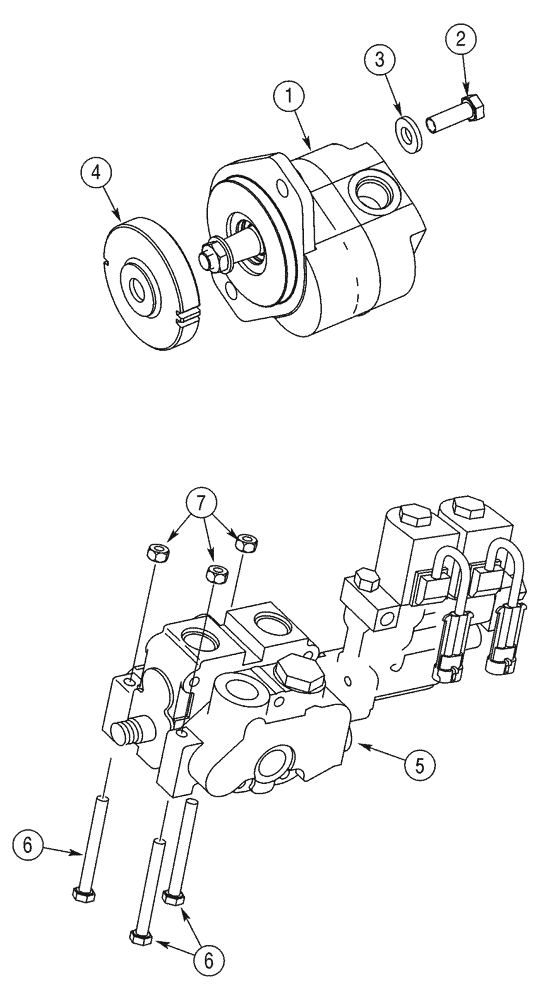

Gear Pump and Control Valve Mounting

1шт.

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

411822A1

PUMP, HYDRAULIC

Component Parts Not Serviced Separately

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

J924187

PINION

1шт.

5

372194A2

VALVE

See Figure 08-38

1шт.

6

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

7

832-41408

NUT,M8 x 1.25, Cl 10

M8

3шт.
