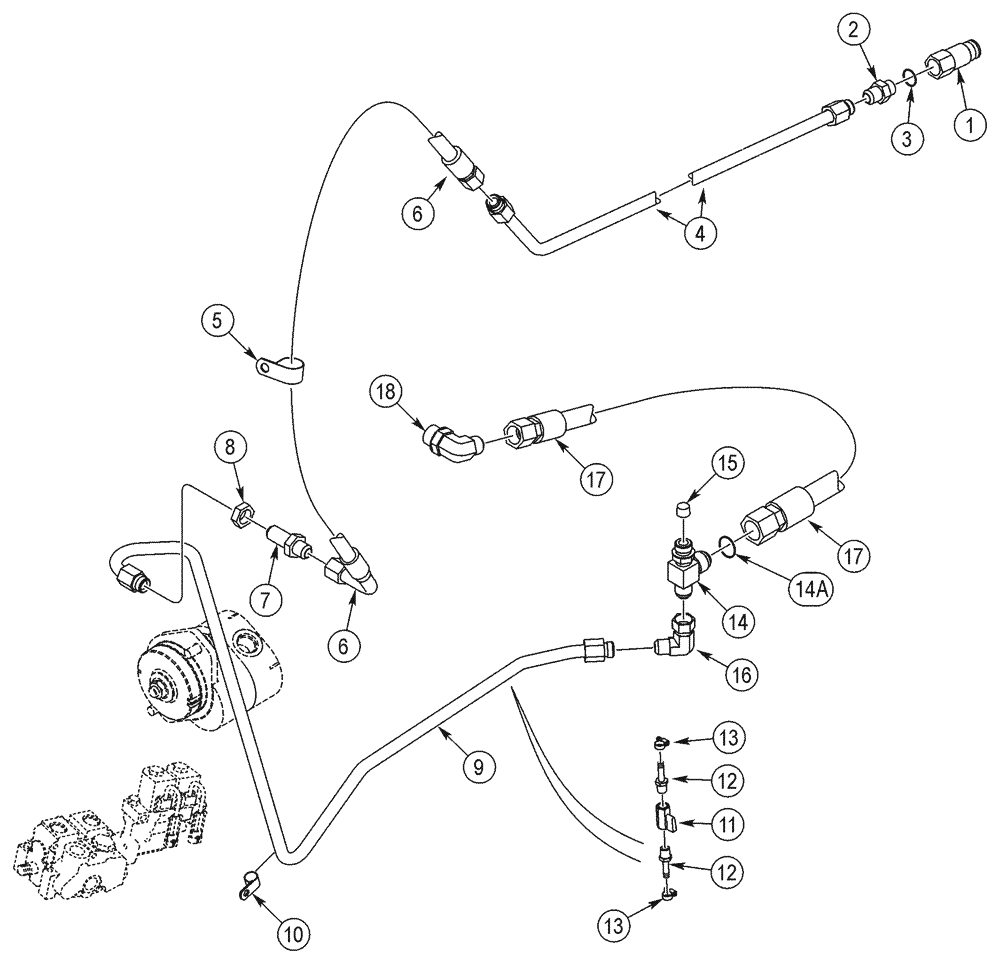

Запчасти Case 75XT (08-30) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

Drain, Serial Range: Lines-Coupling

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

122180A1

COUPLING, BREAK AWAY

Male, See Figure 08-25

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

413417A1

TUBE

Case Drain, Loader Arm

1шт.

5

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

6

401288A2

HOSE ASSY.

1800 mm (70-7/8 in), Case Drain, Loader Arm

1шт.

7

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

8

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

9

401285A2

TUBE

Case Drain, Chassis

1шт.

10

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

11

397431A1

VALVE

1шт.

12

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8 stem x PT

2шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

14

257868A1

TEE

Includes 14A

1шт.

14a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

217-434

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT

1шт.

16

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

17

401296A1

HOSE ASSY.

800 mm (31-1/2 in), Loader Valve to Case Drain

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.
