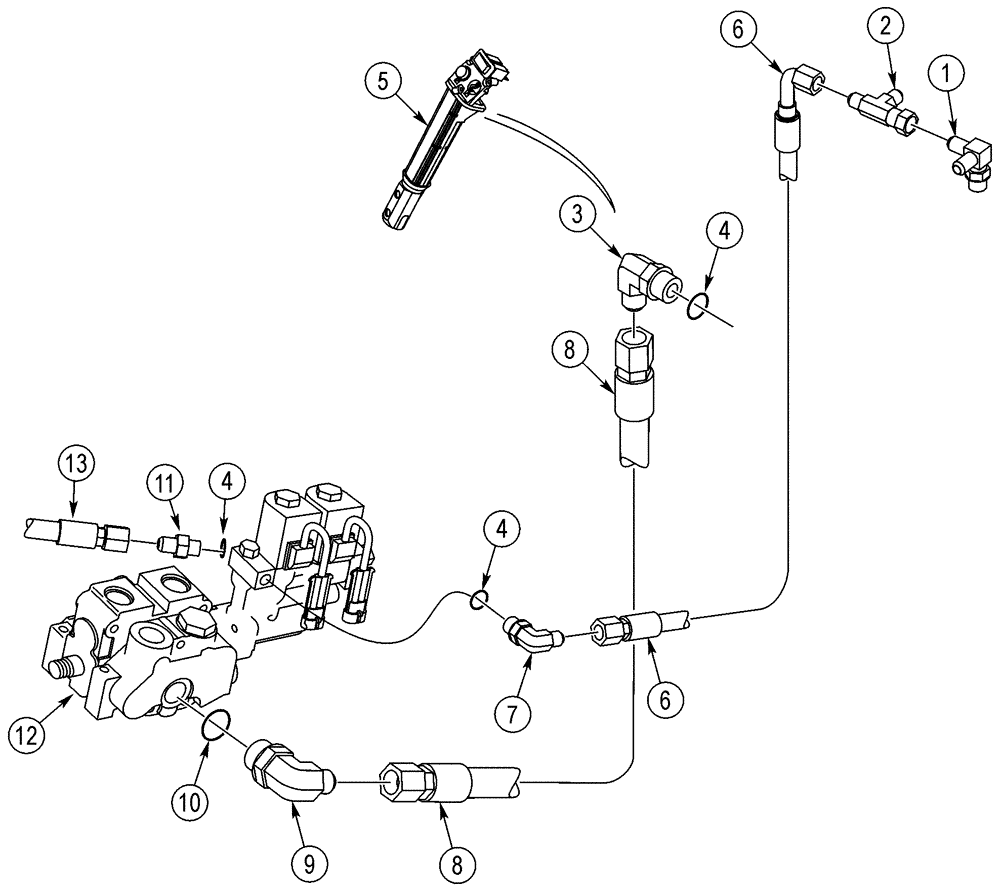

Запчасти Case 75XT (08-28) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

Charge Pressure and Pilot Relief Lines

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

2

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Inc. 4

1шт.

5

235909A3

HANDLE

Left Hand Brake, See Figure 04-24

1шт.

6

401293A1

HOSE ASSY.

1325 mm (52-3/16 in), Charge Pressure to Valve Pilot

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 4

1шт.

8

401295A1

HOSE ASSY.

1215 mm (47-7/8 in), Power, Serial Range: Beyond-Valve

1шт.

9

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

1шт.

12

372194A2

VALVE

See Figure 08-38

1шт.

13

401292A1

HOSE ASSY.

605 mm (23-7/8 in), Valve, Serial Range: Pilot-Tank

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
