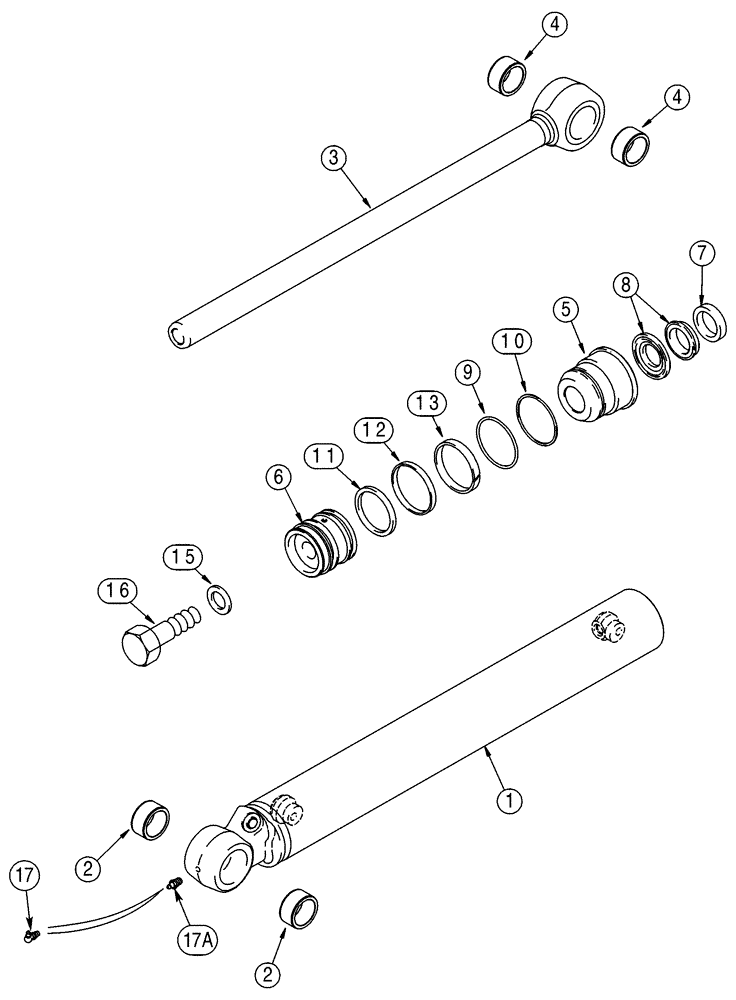

Запчасти Case 75XT (08-23) - CYLINDER - LOADER BUCKET (08) - HYDRAULICS

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk, Loader Bucket, Consists Of 1 - 17

2шт.

259694A3R

REMAN-HYD CYLINDER

75XT

2шт.

259694A3C

CORE-HYD CYLINDER

Return Number

2шт.

1

304201A1

HYD CYL SLEEVE

Includes 2

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

3

182553A1

PISTON ROD

32 mm OD, Includes 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

319595A1

CYLINDER END CAP

1шт.

6

304202A1

JACK PISTON

1шт.

252828A3

SEAL KIT

Consists Of 7 - 13

1шт.

7

D95141

WIPER SEAL

1шт.

8

1542873C1

PACKAGE

Not Serviced Separately, Rod And Buffer Seal, Order 252828A3

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

11

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

Piston

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader

1шт.

13

G100714

RING

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Replaces 28-1240

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

No Longer Used, Order 219-1, Ref 17A

1шт.

17a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
