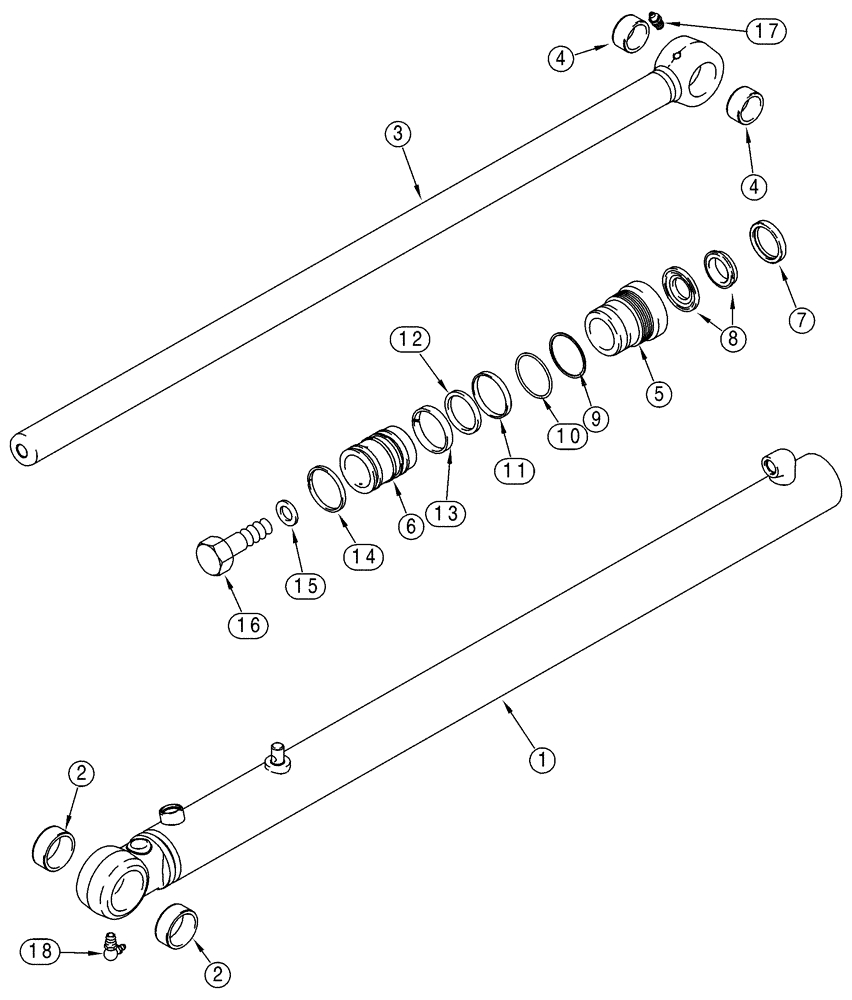

Запчасти Case 75XT (08-21) - CYLINDER - LOADER LIFT (08) - HYDRAULICS

2-1/4 Inch Inside Diameter

1шт.

305509A2

CYLINDER ASSY.

57 ID x 1049 mm strk, Loader Lift, Consists Of 1 - 18, No Longer Available, Order 336187A1, See Figure 08-22, See Note

2шт.

336187A1R

REMAN-HYD CYLINDER

75XT, Reman for New P/N 305509A2

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

1

275062A1

HYD CYL SLEEVE

Includes 2

1шт.

336187A1R

REMAN-HYD CYLINDER

75XT, Reman for New P/N 275062A1

1шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

3

305510A1

PISTON ROD

Includes 4

1шт.

336187A1R

REMAN-HYD CYLINDER

75XT, Reman for New P/N 305510A1

1шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

305513A2

CYLINDER END CAP

1шт.

6

305515A1

JACK PISTON

1шт.

305517A3

SET OF PARTS

Consists Of 7 - 14

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 305517A3

1шт.

9

189122A1

BACK-UP RING

1шт.

10

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

11

322868A1

SEAL

Piston

1шт.

12

190854A1

SEALING RING

SEALRING Loader

1шт.

13

190855A1

RING

1шт.

14

191190A1

RING

Cast Iron

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Replaces 28-1240

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

Note:When replacing one 305509A2, 2-1/4 inch cylinder assembly, with 336187A1, 2-1/2 inch cylinder assembly, must replace both old cylinders as a matched set.

1шт.

Nota : Lors du remplacement d'un vérin de 2-1/4 in., réf. 30550A2, par un vérin de 2-1/2 in., réf. 336187A1, remplacer chaque ensemble de vérins.

1шт.

Hinweis: Beim Austausch einer 2 1/4 in. Zylinderbaugruppe 305509A2 durch eine 2 1/2 in. Zylinderbaugruppe 336187A1 müssen die beiden alten Zylinder als ganzer Satz ausgetauscht werden.

1шт.

Nota: Al reemplazar un conjunto de cilindro 305509A2 de 2-1/4 pulg. con un conjunto 336187A1 de 2-1/2 pulg. se deben reemplazar los dos cilindros viejos como un juego.

1шт.
