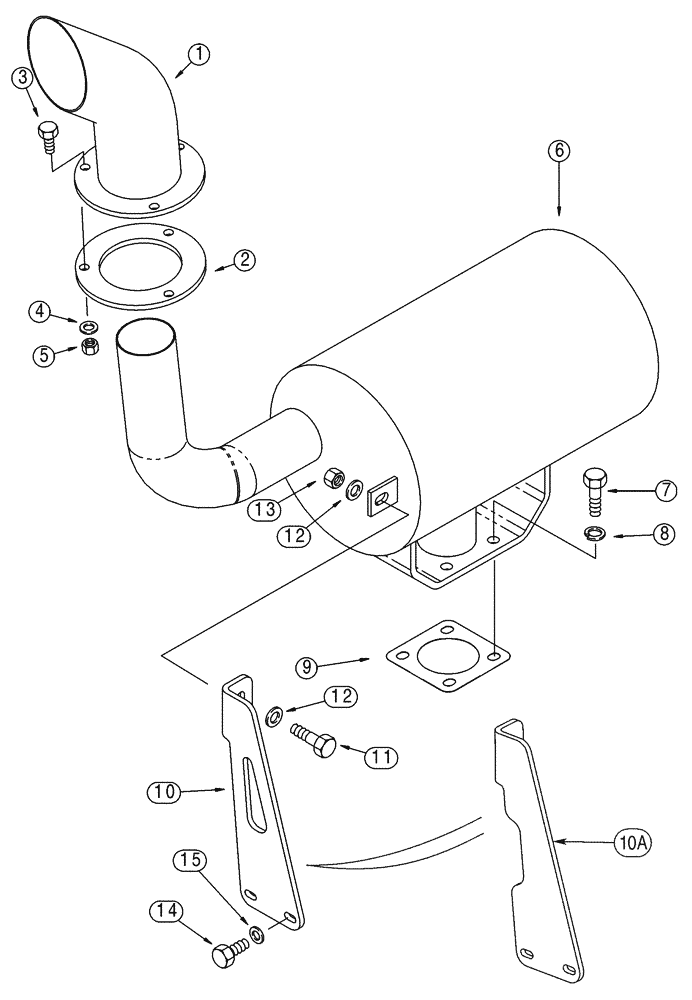

Запчасти Case 75XT (02-04) - EXHAUST SYSTEM (02) - ENGINE

1

304811A1

EXTENSION,88.9 mm ID, 139.7 mm OD, 287.2 mm Length

N.A. Only

1шт.

1

304811A1

EXTENSION,88.9 mm ID, 139.7 mm OD, 287.2 mm Length

N.A. Only

1шт.

1

281925A1

TUBE,88.9 mm OD, 227 mm Length

Europe Only

1шт.

2

247026A1

LARGE PLATE

PLATE, LARGE

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

5

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

6

298661A3

MUFFLER

Spark Arrester

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

J912220

GASKET,0.4mm Thk

1шт.

10

298663A1

SUPPORT

No Longer Available, Order 298663A2, REF 10A

1шт.

10a

298663A2

SUPPORT

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

15

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.
