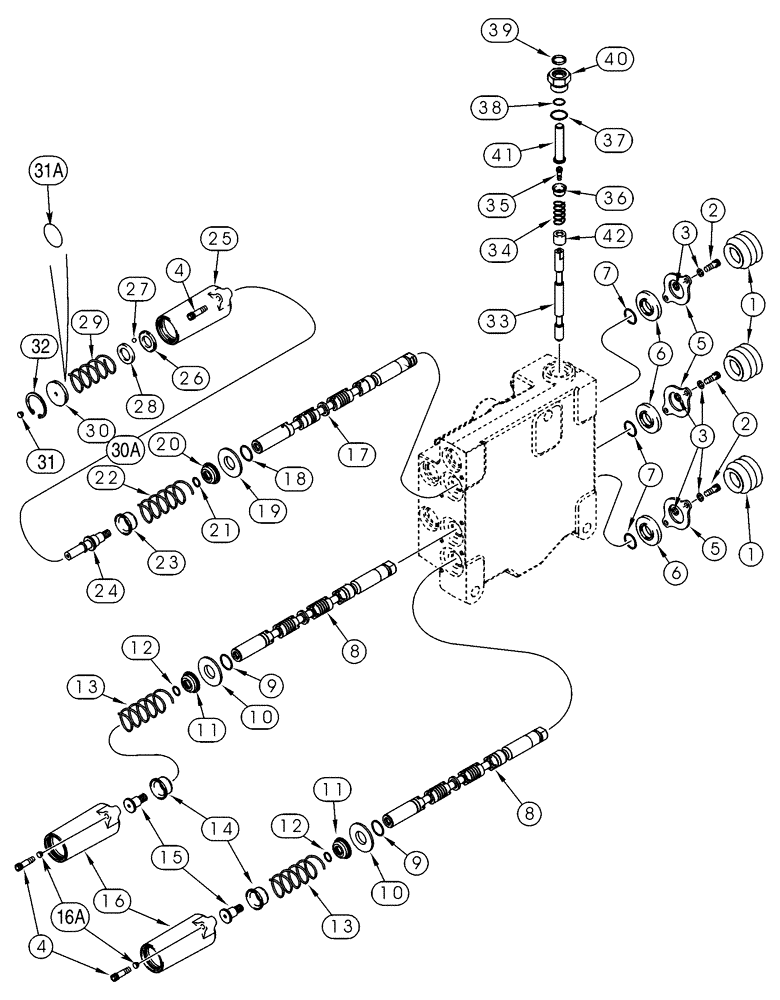

Запчасти Case 75XT (08-16) - VALVE, CONTROL - SPOOLS AND DETENTS (08) - HYDRAULICS

*

North American Models -JAF0318921

1шт.

*

European Models -JAF0352168

1шт.

1

183707A1

BOOT

3шт.

251831A5

VALVE

3 spool, Replaces 251831A4, Consists Of 2 - 42, Also Includes 08-13

1шт.

2

61-3106

HEX SOC SCREW,#10 - 24 x 3/8"

No. 10 x 3/8

6шт.

3

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

12шт.

4

61-31016

HEX SOC SCREW,#10 - 24 x 1"

6шт.

5

183715A1

LARGE PLATE

PLATE, LARGE

3шт.

6

183711A1

RETAINER

3шт.

7

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

3шт.

8

NSS

NOT SOLD SEPARAT

Spool, Loader Bucket, Auxiliary

2шт.

9

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

2шт.

10

G108630

HOLDER

2шт.

11

G108914

SPRING CUP

2шт.

12

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2шт.

13

G108915

SPRING

2шт.

14

G108913

SPRING CUP

2шт.

15

183712A1

STUD

Use Loctite

2шт.

*

B17577

LOCTITE

No. 242, 6 ml, Blue, If Used

1шт.

*

345-601

LOCTITE

No. 203, 1 ml, Silver, If Used

1шт.

*

326839A1

DOOR COVER

Consists Of 16, 16A

2шт.

16

183705A2

DOOR COVER

Replaces 183705A1

2шт.

16a

G107780

VALVE, CHECK

1шт.

17

NSS

NOT SOLD SEPARAT

Spool, Loader Lift

1шт.

18

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

19

G108630

HOLDER

1шт.

20

G108914

SPRING CUP

1шт.

21

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

22

G108915

SPRING

1шт.

23

G108913

SPRING CUP

1шт.

24

307335A1

STUD

Use Loctite

1шт.

*

B17577

LOCTITE

No. 242, 6 ml, Blue, If Used

1шт.

*

345-601

LOCTITE

No. 203, 1 ml, Silver, If Used

1шт.

*

311616A1

DETENT

Used In 251831A4, Consists Of 25 - 32

1шт.

*

311616A2

DETENT

Used In 251831A5, Consists Of 25 - 32

1шт.

25

NSS

NOT SOLD SEPARAT

Body

1шт.

26

G108912

WASHER

1шт.

27

211-1107

BALL,7/32" Dia

7/32; 48,CRS, Used In 251831A4

8шт.

27

511-1060

BALL,6mm Dia

Used with 251831A5

8шт.

28

G108911

WASHER

1шт.

29

311022A1

SPRING

1шт.

30

1341975C1

SPRING CUP

Used In 251831A4, No Longer Available, Order 321361A1

1шт.

*

321361A1

RETAINER

Consists Of 30A, 31, 31A

1шт.

30a

NSS

NOT SOLD SEPARAT

Retainer

1шт.

31

G107780

VALVE, CHECK

1шт.

31a

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

1шт.

32

100-21118

SNAP RING,1.188", Int, #118

1шт.

33

223925A2

STEM

Replaces 223925A1

1шт.

34

256109A1

SPRING

1шт.

35

61-3106

HEX SOC SCREW,#10 - 24 x 3/8"

No. 10 x 3/8, Use Loctite No. 242

1шт.

*

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

36

256108A1

RETAINER

1шт.

*

282881A1

PLUG

Consists Of 37 - 40

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

39

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

40

282286A1

PLUG

1шт.

41

282285A1

STEM

1шт.

42

282346A1

STOP

1шт.

*

249533A1

SEAL KIT

Seal, Incl. Ref 7, 12, 18 - 20 (08-13); Ref 1, 7, 9, 18, 21, 37, 38, 39 (08-16); Ref 2 - 4, 8 - 10 (08-18)

1шт.
