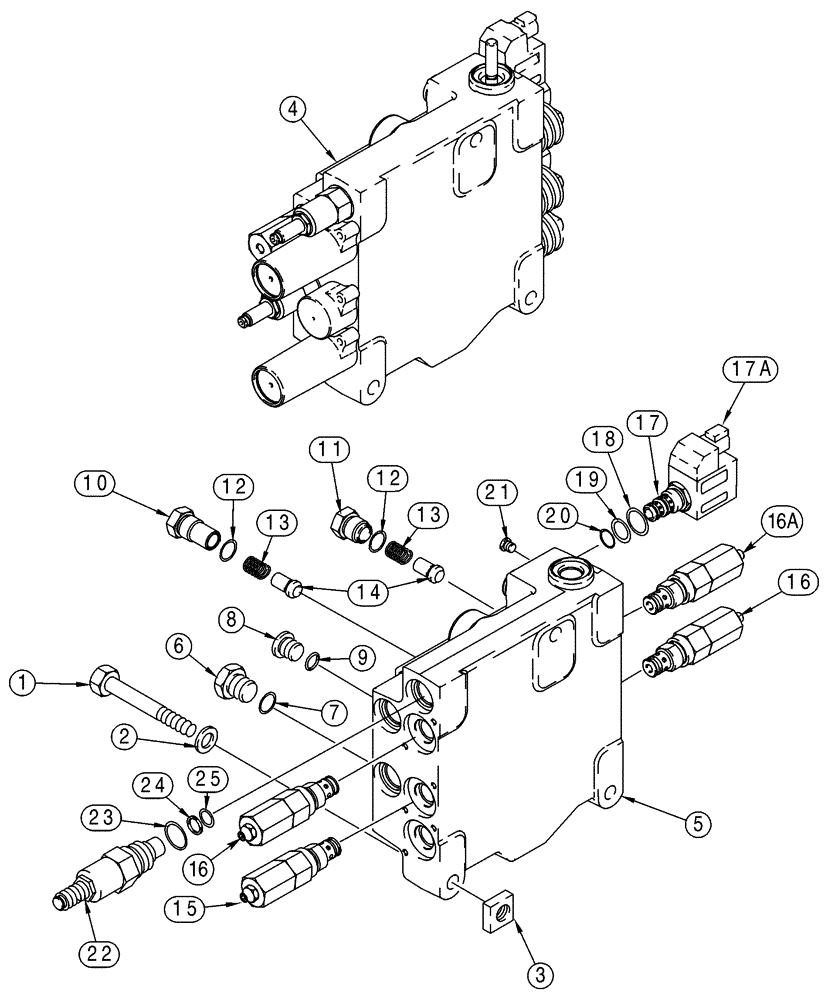

Запчасти Case 75XT (08-13) - VALVE, CONTROL - MOUNTING (08) - HYDRAULICS

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

3шт.

3

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

2шт.

4

251831A5

VALVE

3 spool, Replaces 251831A4, Consists Of 4 - 25, Also Includes Figure 08-16 - 08-17

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

86625138

PLUG,7/18" - 14

Includes Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl. 9

1шт.

293788A1

PLUG

Consists Of 10, 12

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Replaces 227212A1

1шт.

293787A1

PLUG,ORB

Consists Of 11, 12

3шт.

11

NSS

NOT SOLD SEPARAT

Plug, Replaces G109644

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

4шт.

14

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

4шт.

15

234828A1

VALVE

3100 psi, See Figure 08-18

1шт.

16

186709A1

VALVE

3800 psi, See Figure 08-18

2шт.

16a

328852A1

VALVE

2850 psi, See Figure 08-18

1шт.

184505A1

SOLENOID

Valve Without Screen, Replaced By 349295A1

1шт.

349295A1

SOLENOID VALVE

Replaces 184505A1, Consists Of 17 - 20A, Includes Screen, Ref 20A

1шт.

17

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

17a

NSS

NOT SOLD SEPARAT

Coil

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

20a

NSS

NOT SOLD SEPARAT

Screen, Not Shown

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Expansion

1шт.

299075A1

VALVE, PRESSURE RELI

EF Consists Of 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

Body

1шт.

G110098

KIT

Consists Of 23 - 25

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

1шт.

25

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

249533A1

SEAL KIT

Incl. Ref 7, 12, 18 - 20 (08-13); Ref 1, 7, 9, 18, 21, 37, 38, 39 (08-16); Ref 2 - 4, 8 - 10 (08-18)

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
