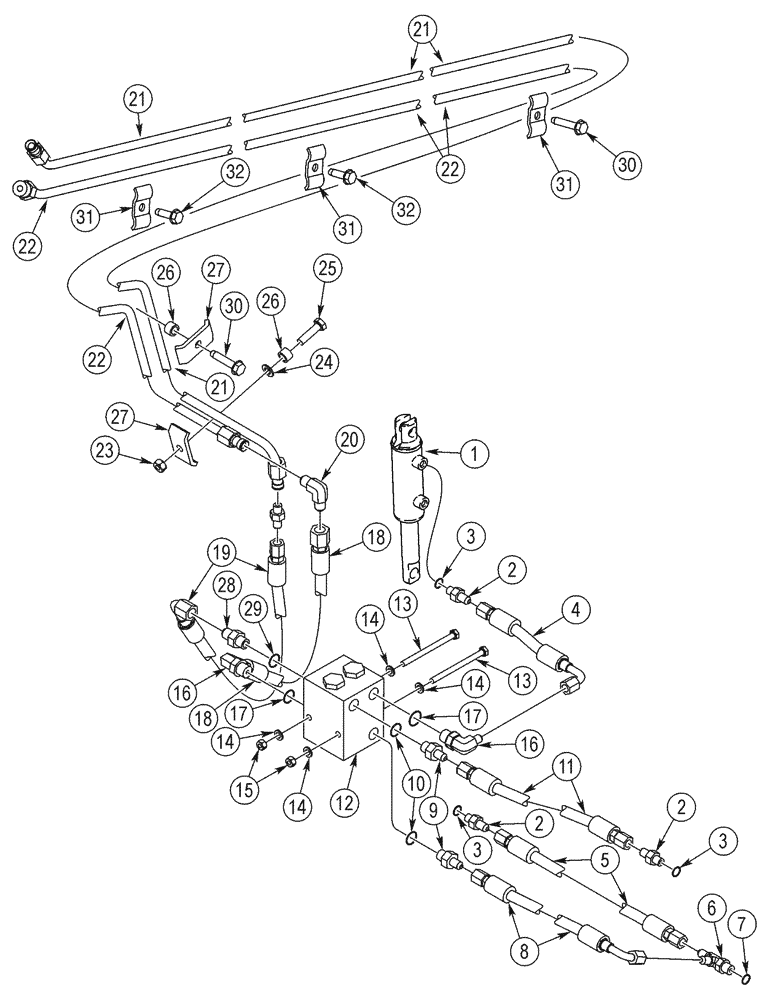

Запчасти Case 75XT (08-12) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

Hose Mounting, Serial Range: Bracket-Cylinders

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

255866A1

CYLINDER ASSY.

56 mm strk, Component Parts Not Serviced Separately

2шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 3

3шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

176 mm (7 in), See Figure 09-05

1шт.

5

257764A1

HYDRAULIC HOSE

638 mm (25-1/8 in), See Figure 09-05

1шт.

6

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

275452A2

HOSE ASSY.

500 mm (19-3/4 in), See Figure 09-05

1шт.

9

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 10

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

294884A1

HOSE ASSY.

506 mm (20 in), See Figure 09-05

1шт.

12

294741A1

CHECK VALVE

Component Parts Not Serviced Separately

1шт.

13

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

832-41306

NUT,M6 x 1, Cl 10

2шт.

16

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 Or, Includes 17

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

399940A1

HOSE ASSY.

860 mm (33-7/8 in)

1шт.

19

399941A1

HOSE ASSY.

830 mm (32-11/16 in)

1шт.

20

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

9/16 fl x fl

1шт.

21

399935A2

TUBE

For Attaching Parts, See Figure 08-10, REF 22

1шт.

22

399933A2

TUBE

For Attaching Parts, See Figure 08-10, REF 18

1шт.

23

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

26

395545A1

SPACER

2шт.

27

R17319

CLAMP

2шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 29

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

281-24824

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1 1/2"

5/16 x 1.5

2шт.

31

A12032

CLAMP

3шт.

32

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16 x 1

2шт.

Hose Mounting, Serial Range: Bracket-Cylinders

1шт.

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

255866A1

CYLINDER ASSY.

56 mm strk, Component Parts Not Serviced Separately

2шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 3

3шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

176 mm (7 in), See Figure 09-05

1шт.

5

257764A1

HYDRAULIC HOSE

638 mm (25-1/8 in), See Figure 09-05

1шт.

6

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

275452A2

HOSE ASSY.

500 mm (19-3/4 in), See Figure 09-05

1шт.

9

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 10

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

294884A1

HOSE ASSY.

506 mm (20 in), See Figure 09-05

1шт.

12

294741A1

CHECK VALVE

Component Parts Not Serviced Separately

1шт.

13

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

15

832-41406

NUT,M6 x 1, Cl 8

4шт.

16

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 Or, Includes 17

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

399940A1

HOSE ASSY.

860 mm (33-7/8 in)

1шт.

19

399941A1

HOSE ASSY.

830 mm (32-11/16 in)

1шт.

20

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

9/16 fl x fl

1шт.

21

399935A2

TUBE

For Attaching Parts, See Figure 08-11, REF 18

1шт.

22

399933A2

TUBE

For Attaching Parts, See Figure 08-11, REF 14

1шт.

23

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

26

395545A1

SPACER

2шт.

27

R17319

CLAMP

2шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 29

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

281-24824

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1 1/2"

5/16 x 1.5

2шт.

31

A12032

CLAMP

3шт.

32

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16 x 1

2шт.
