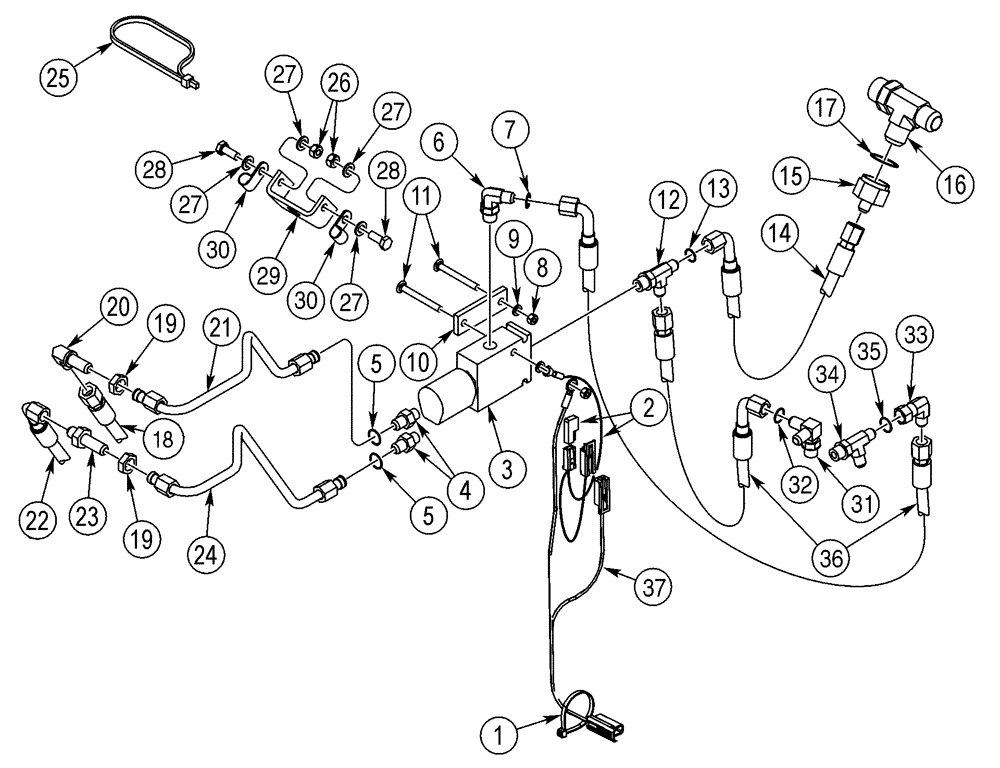

Запчасти Case 75XT (08-10) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

Gear Pump to Hose Mounting Bracket

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0452168

1шт.

1

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

2

394910A1

HARNESS

Flyback Diode Jumper

1шт.

3

187505C91

VALVE

See Figure 08-24

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 7

1шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

11

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

12

376352A1

TEE

.952 mm (3/8 in), Includes 13

1шт.

14

399944A1

HOSE ASSY.

1340 mm (52-3/4 in)

1шт.

15

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

3/4 x 3/8

1шт.

16

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x Or, Includes 17

1шт.

18

399942A2

HOSE ASSY.

1700 mm (66-7/8 in), For Attaching Parts, See Figure 08-12, REF 22

1шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

20

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

21

399937A1

TUBE

Coupler Valve

1шт.

22

399943A2

HOSE ASSY.

1780 mm (70 in), For Attaching Parts, See Figure 08-12, REF 21

1шт.

23

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

24

399939A1

TUBE

Coupler Valve

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

26

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

29

276726A1

SUPPORT

1шт.

30

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

31

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 32

1шт.

33

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

34

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 35

1шт.

36

399945A1

HOSE ASSY.

2185 mm (86 in)

2шт.

37

259347A1

HARNESS

Hydraulic Coupler, See Figure 04-11

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
