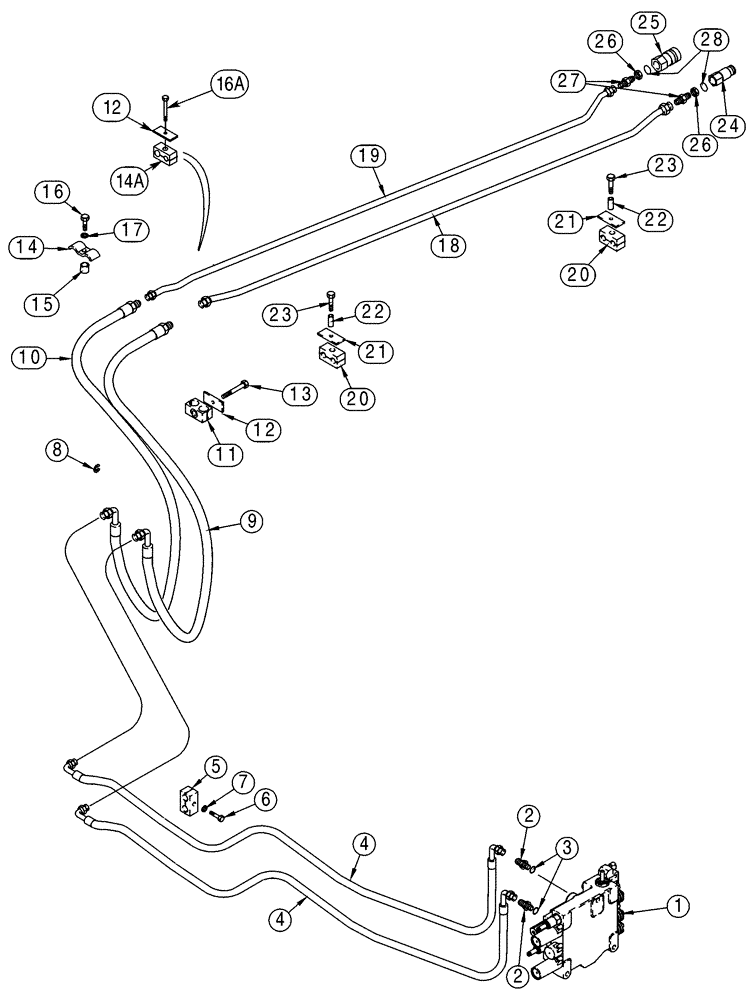

Запчасти Case 75XT (08-07) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

251831A5

VALVE

3 spool, Replaces 251831A4, See Figure 08-13, 08-16

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

292576A1

HOSE ASSY.

1800 mm (70-7/8 in)

2шт.

5

1546027C1

CLAMP

1шт.

6

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

8

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

9

293623A2

HOSE ASSY.,15.88mm ID x 1315mm L

1315 mm (51-7/8 in)

1шт.

10

281948A2

HOSE ASSY.,15.88mm ID x 1380mm L

1380 mm (54-3/8 in)

1шт.

11

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

1шт.

12

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

13

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

14

R15257

CLAMP

If Used

1шт.

14a

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID, Two Piece, If Used

1шт.

15

319011A1

SPACER

No Longer Available

1шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

If Used

1шт.

16a

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

If Used

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

2шт.

18

295610A4

HYD TUBE,1547, 38 mm Length

1шт.

19

295608A4

HYD TUBE,1594, 66 mm Length

1шт.

20

257857A1

CLAMP

2 piece

2шт.

21

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

22

259905A1

SPACER

2шт.

23

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

24

122180A1

COUPLING, BREAK AWAY

See Figure 08-25

1шт.

25

143431A1

COUPLING, QUICK, FEM

See Figure 08-25

1шт.

26

595460

BHD LOCK NUT,7/8" - 14

7/8

2шт.

27

184602A1

FITTING

Includes 28

2шт.

28

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
