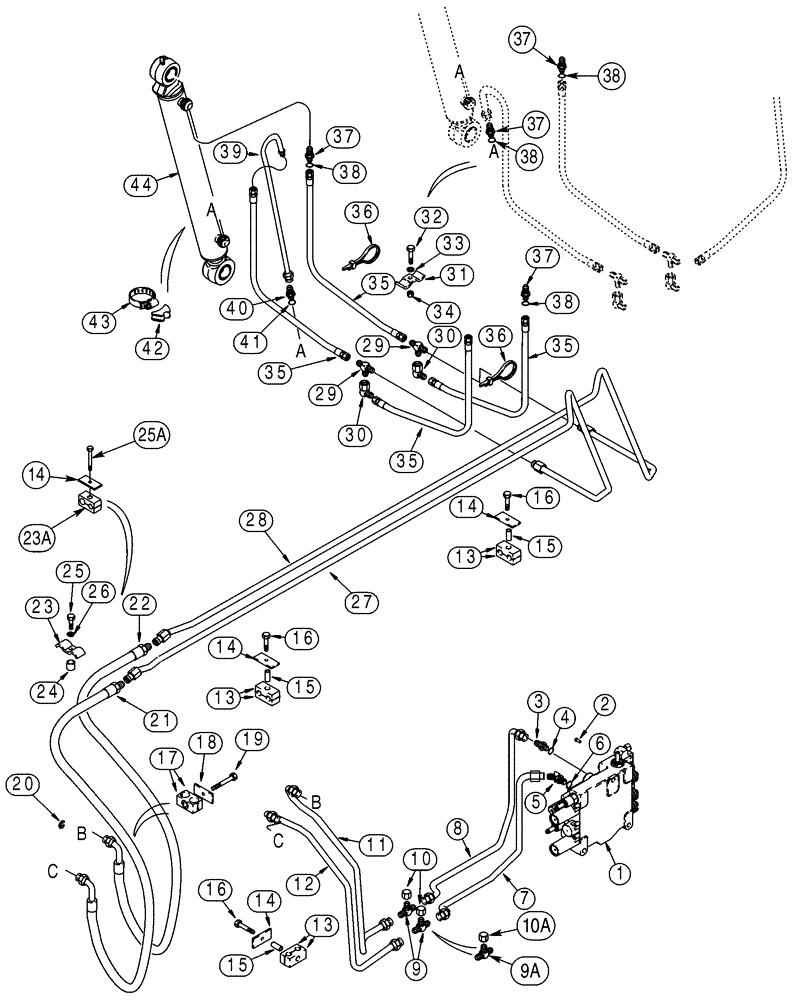

Запчасти Case 75XT (08-04) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

*

North American Models -JAF0318921

1шт.

*

European Models -JAF0352168

1шт.

1

251831A5

VALVE

3 spool, Replaces 251831A4, See Figure 08-13, 08-16

1шт.

2

297912A2

PORT

156 in orifice

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

259298A6

PIPE

1шт.

8

259300A5

PIPE

1шт.

9

218-595

TEE,7/8"-14, 37 Degree

7/8 x 7/8 x 7/8

2шт.

9a

218-1585

TEE,37 Degree, 7/8"-16 x 3/4"-16 Br

5/8 x 5/8 x 1/2, If Used, See Note

2шт.

10

218-756

CAP,37 Degree, 7/8"-14

2шт.

10a

218-755

CAP,37 Degree, 3/4"-16

If Used

2шт.

11

293090A1

PIPE

1шт.

12

293092A1

PIPE

1шт.

13

257857A1

CLAMP

2 piece

3шт.

14

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

4шт.

15

259905A1

SPACER

3шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

17

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

1шт.

18

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

20

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

21

281948A2

HOSE ASSY.,15.88mm ID x 1380mm L

1380 mm (54-3/8 in)

1шт.

22

293623A2

HOSE ASSY.,15.88mm ID x 1315mm L

1315 mm (51-7/8 in)

1шт.

23

R15257

CLAMP

If Used

1шт.

*

Note:See Figure 08-06 for self-leveling hydraulics.

1шт.

*

Nota : Voir Figure 08-06 pour les systèmes hydrauliques de correction d'assiette.

1шт.

*

Note: Siehe Figure 08-06 bzgl. selbstnivellierender Hydraulik.

1шт.

*

Note: Ver Figure 08-06 para sistemas hidráulicos auto-nivelantes

1шт.

23a

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID, If Used

1шт.

24

319011A1

SPACER

No Longer Available

1шт.

25

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

If Used

1шт.

25a

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

If Used

1шт.

26

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm, If Used

2шт.

27

323246A1

TUBE

Open End

1шт.

28

323248A1

TUBE

Closed End

1шт.

29

218-1583

TEE,37 Degree, 3/4"-16 x 7/8"-14, Run

2шт.

30

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

31

A12032

CLAMP

1шт.

32

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

33

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

1шт.

34

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

35

284027A2

HOSE ASSY.,9.53mm ID x 740mm L

740 mm (29-1/8 in), Replaces 284027A1

4шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, If Used

2шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 38

2-4шт.

39

284030A2

PIPE

If Used

2шт.

40

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Includes 41, If Used

2шт.

42

D38648

BLOCK

If Used

2шт.

43

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

If Used

2шт.

44

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk, See Figure 08-23

2шт.

44

259694A3R

REMAN-HYD CYLINDER

75XT

2шт.

44

259694A3C

CORE-HYD CYLINDER

Return Number

2шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1-2шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

If used

1шт.
