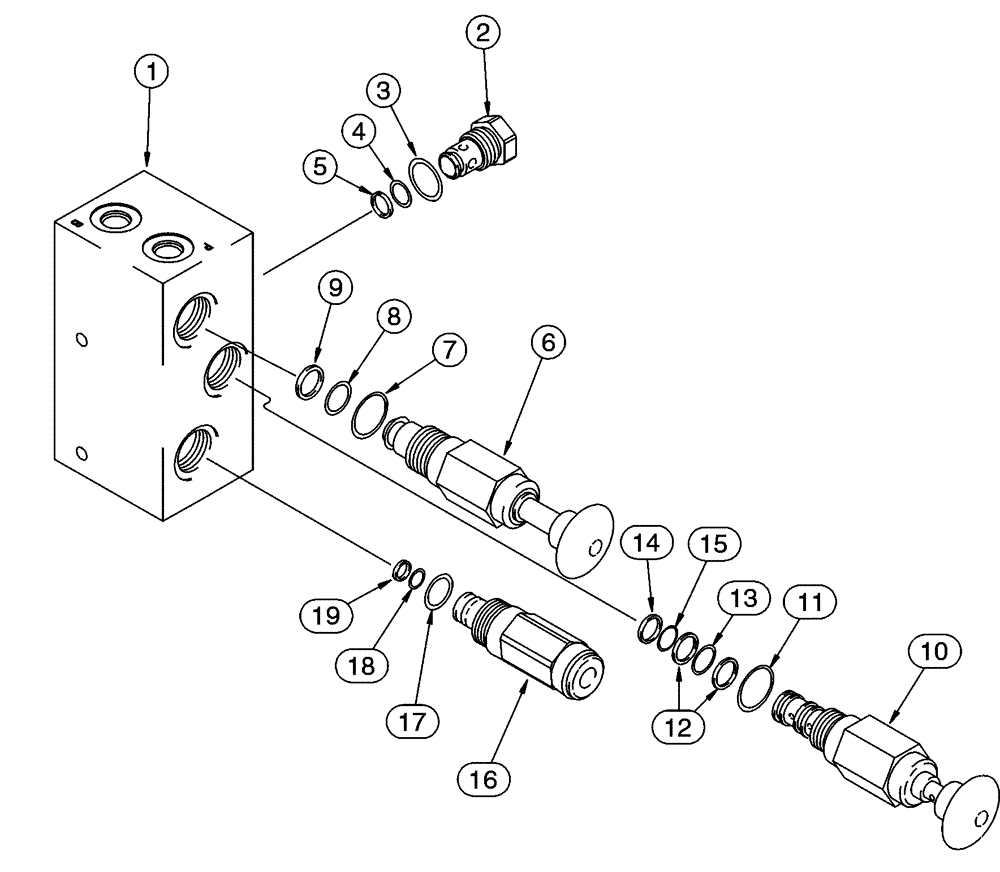

Запчасти Case 75XT (07-07) - PUMP - BRAKE (07) - BRAKES

281117A2

PUMP

Consists Of 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

120459A1

VALVE,3/4" - 16

Consists Of 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

1542831C1

SEAL KIT

Inc. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

295299A1

PUMP

Hand Operated, Consists Of 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Pump

1шт.

1542830C2

SEAL KIT

Consists of 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

295301A1

BY-PASS VALVE

Consists Of 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

295302A1

SEAL KIT

Consists Of 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

295303A1

VALVE POPPET

Consists Of 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

1542831C1

SEAL KIT

Inc. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.
