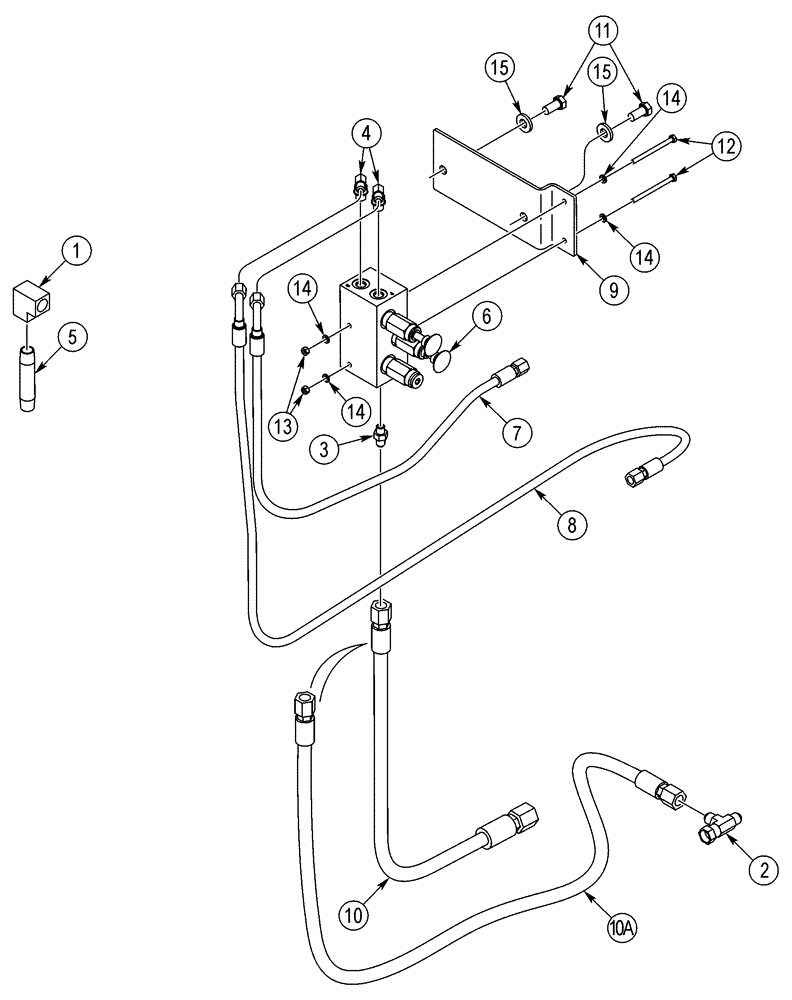

Запчасти Case 75XT (07-06) - BRAKE RELEASE - MANUAL (07) - BRAKES

1

217-1054

ELBOW,1/2" - 14 NPTF Female

1/8 PT

1шт.

2

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

5

221-194

PIPE,Nipple, 1/2" NPT x 4"

1/2 PT x 4, Replaces 221-1194

1шт.

6

281117A2

PUMP

1шт.

7

335870A1

HOSE

900 mm (35 in), Serial Range: Valve-Pump

1шт.

8

335878A1

HOSE

1650 mm (65 in), Serial Range: Pump-Brake

1шт.

9

335925A1

BRACKET

Mounting

1шт.

10

335882A1

HOSE

840 mm (33 in), No Longer Used, Order 398144A1, REF 10A

1шт.

10a

398144A1

HOSE ASSY.

1300 mm (51-1/4 in)

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

13

832-41306

NUT,M6 x 1, Cl 10

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.
