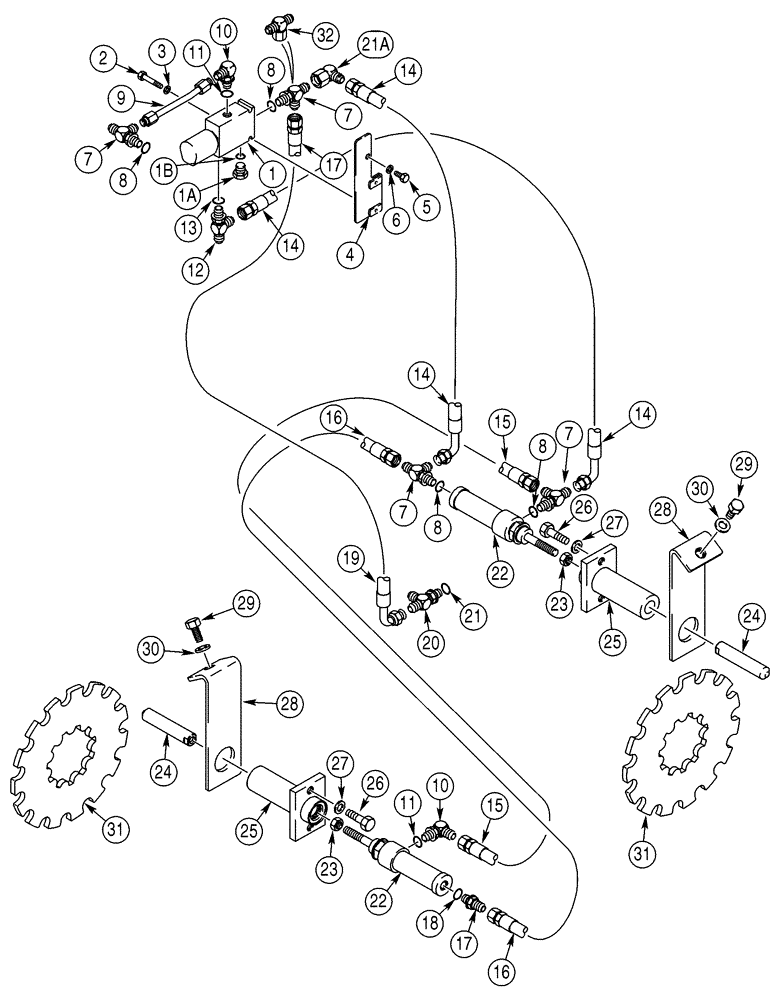

Запчасти Case 75XT (07-01) - BRAKE SYSTEM (07) - BRAKES

Models With Pin-Type Brake

1шт.

1

187505C91

VALVE

See Figure 08-24

1шт.

1a

76349

PLUG,9/16" - 18 ORB

Incl. 1B

1шт.

1b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

2

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

293551A2

HOLDER

Valve Mounting

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 8

4шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

293465A1

TUBE,9.53 mm OD, 159 mm Length

Valve

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Incl. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

7/16 fl x 9/16 fl x Or, Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

311870A2

HOSE ASSY.

400 mm (15-3/4 in)

2шт.

15

311871A1

HOSE ASSY.

685 mm (27 in)

1шт.

16

311873A1

HOSE ASSY.

430 mm (16-15/16 in)

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

321054A1

HOSE ASSY.

525 mm (20-3/4 in)

1шт.

20

218-5650

TEE,37 Degree, 3/4"-16, 9/16"-18 O-Ring Run, 3/4"-16

3/4 fl x fl x 9/16 Or, Incl. 21

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

If used

1шт.

22

304152A2

MASTER CYLINDER,25.14mm Stroke

Parking Brake

2шт.

23

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

24

309155A2

PIN,22.23mm OD x 112mm L

Parking Brake, Use Loctite No. 587

2шт.

25

309157A1

TUBE

Lock Pin

2шт.

26

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Use Loctite No. 587

4шт.

NSS

NOT SOLD SEPARAT

Loctite, No. 587, Sealant, Blue

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

28

309659A1

SUPPORT

Pin Support

2шт.

29

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

Hex, M16 x 35, 10.9, Full Thd

2шт.

30

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces 896-16016, Use Loctite No. 587

2шт.

345-196

Loctite, No. 587, Blue

1шт.

31

308825A1

DISC

Lock Pin

2шт.

32

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18

1шт.
