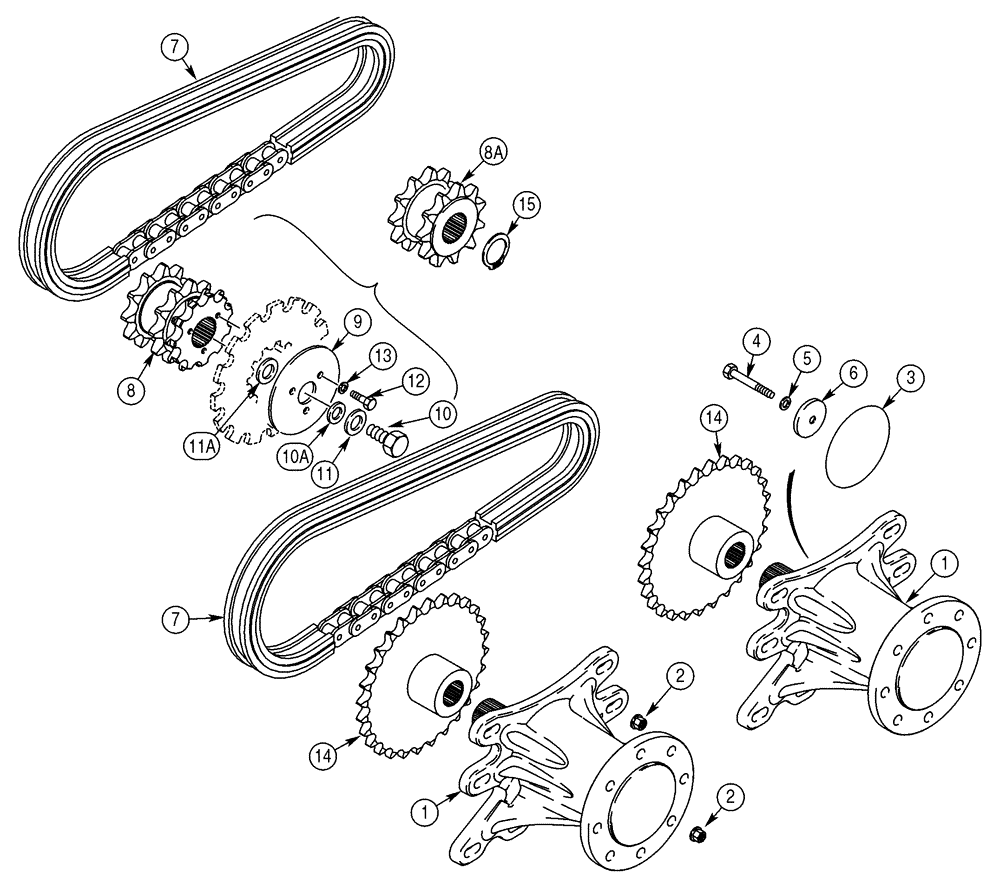

Запчасти Case 75XT (06-22) - DRIVE LINE (06) - POWER TRAIN

1

REF

INSTRUCTION

Axle Assy, See Figure 06-23, 06-24

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

826-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 10.9

JAF0317662 Hex, M14 x 140, 10.9

4шт.

4

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

JAF0317663 -, Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

5

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15,5 x 28 x 3 mm, - JAF0317662

4шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

JAF0317662 -, If used

4шт.

6

245993A1

WASHER

- JAF0317662

4шт.

6

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

JAF0317663 -, Replaces 345180A1

4шт.

7

233112A1

CHAIN (CE)

100/56P

4шт.

8

314154A1

SPROCKET ASSY.

11T, If Used

2шт.

8a

304888A1

DRIVE SPROCKET

11T, If Used, JAF0318182 -

2шт.

9

314135A1

PLATE

Sprocket Retaining, If Used

2шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Use Loctite No. 242

2шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

10a

496-81022

WASHER

11/16 x 1-1/4 x 1/4 in, If Used

2шт.

11

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

If used

2шт.

11a

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

If used

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Use Loctite No. 242, If Used

6шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

6шт.

14

228141A2

SPROCKET ASSY.

28T, Replaces 228141A1

4шт.

15

100-11212

SNAP RING,#212, Ext

JAF0318182 -

2шт.
