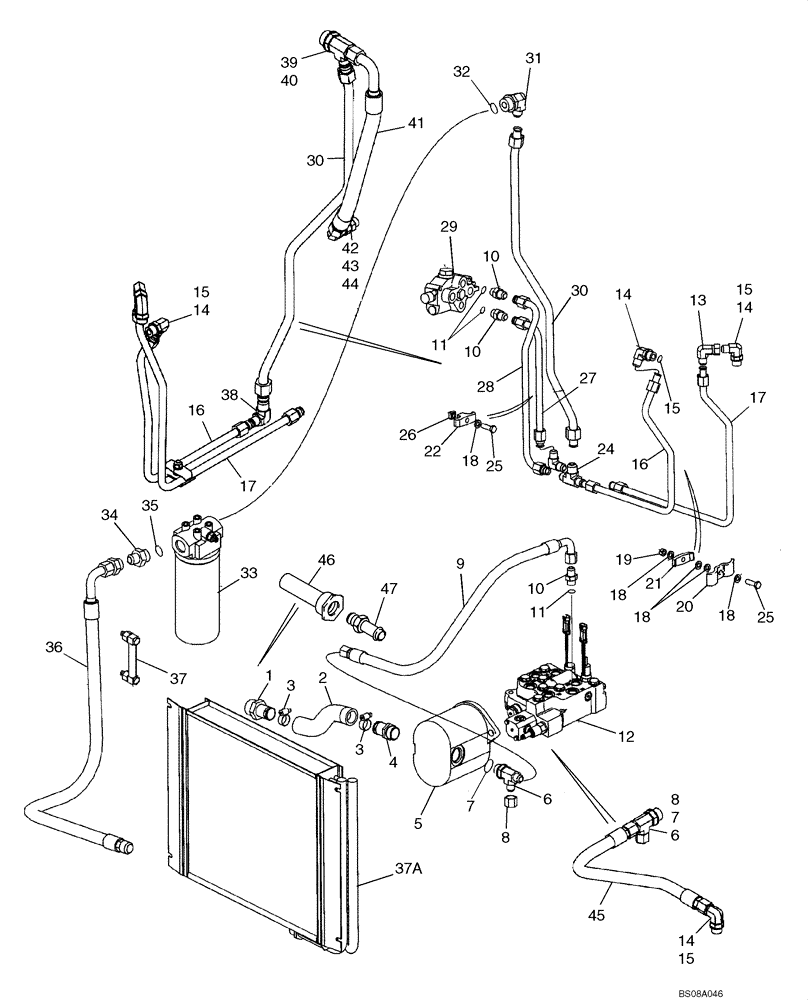

Запчасти Case 70XT (06-02) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN

REF

INSTRUCTION

Tank to Gear Pump; Loader Valve; Auxiliary Valve; Filter and Oil Cooler

1шт.

1

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

1-1/4 stem x PT; If Used

1шт.

2

391772A1

HOSE ASSY.

400 mm (15-3/4 in)

1шт.

3

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

If Used

2шт.

4

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

If Used

1шт.

5

298851A2

PUMP

See Figure 06-20; No Longer Available, Order 87406812

1шт.

84561841R

REMAN-HYD PUMP

60XT, 70XT,Reman for new PN 298851A2

1шт.

84561841C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

87406812

PUMP

Component Parts Not Available At Time Of Printing; Incl. 87413478, Seal Kit; Replaces 298851A2

1шт.

84561841R

REMAN-HYD PUMP

60XT, 70XT, Reman for new PN 87406812

1шт.

84561841C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87413478

SEAL KIT

Use With 87406812

1шт.

5

87442244

PUMP

Pump; Component Parts Not Available At Time Of Printing; Replaces 87406812

1шт.

87442244R

REMAN-HYD PUMP

60XT, 70XT

1шт.

87442244C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84561841R

REMAN-HYD PUMP

60XT, 70XT, Reman for new PN 87442244

1шт.

84561841C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-756

CAP,37 Degree, 7/8"-14

1шт.

9

389604A1

HOSE ASSY.

850 mm (33-15/32 in); Used On 60XT; Pump To Loader Valve; Models Without High Flow Gear; See Figure 08-25, Ref 21; If Used

1шт.

9

388854A1

HOSE ASSY.

710 mm (28 in); Used On 70XT; Pump To Loader Valve; Models Without High Flow Gear; See Figure 08-25, Ref 22; If Used

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. 11

3шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

REF

INSTRUCTION

Loader Control Valve; See Figure 08-13

1шт.

13

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or; Incl. 15

3шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

389559A3

TUBE

Used On 60XT; Loader Valve Return

1шт.

16

388373A2

TUBE

Used On 70XT; Loader Valve Return, Not Illustrated

1шт.

17

389557A2

TUBE

Used On 60XT; Power Beyond To Auxiliary Valve

1шт.

17

385828A2

TUBE

Used On 70XT; Power Beyond To Auxiliary Valve, Not Illustrated

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

19

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

20

86501706

CLAMP

1шт.

21

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

22

D120613

CLAMP,20mm ID

1шт.

23

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

5/8 x 5/8 x 3/4; If Used

1шт.

24

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

7/8 fl x fl

1шт.

25

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

26

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

1шт.

27

381084A1

TUBE,316.7, 87.1 mm Length

Auxiliary Valve Supply

1шт.

28

388375A2

TUBE

Auxiliary Valve Return; If Used

1шт.

29

H674465

VALVE

See Figure 08-19; If Used

1шт.

29

87435245

VALVE

Control; See Figure 08-19A

1шт.

30

407260A1

TUBE

Return To Filter; Models Without High Flow Gear; See Figure 08-25, Ref 13

1шт.

31

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 32; Models Without High Flow Gear; See Figure 08-25, Ref 14; If Used

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

33

222756A2

FILTER ASSY

See Figure 06-05

1шт.

34

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 35

1шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

36

407722A2

HOSE ASSY.

1456 mm (57-5/16 in); Oil Cooler Return

1шт.

37

H435669

GAUGE

1шт.

37a

REF

INSTRUCTION

Oil Cooler; See Figure 06-01

1шт.

38

218-1039

ELBOW,90º, 1 1/16"-12, 37º x 7/8"-14, 37º

90, 3/4 x 5/8; If Used

1шт.

39

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

3/4 x 1 x 3/4; If Used

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

41

87411142

HOSE ASSY.

Auxiliary Valve Return; If Used

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8; If Used

1шт.

43

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

5/8; If used

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

87413736

HOSE ASSY.,15.88mm ID x 730mm L

730 mm (28-3/4 in), Loader Valve Supply; If Used

1шт.

46

H151399

FILTER STRAINER

Suction Line; If Used

1шт.

47

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

1-1/4 ID x 1

1шт.
