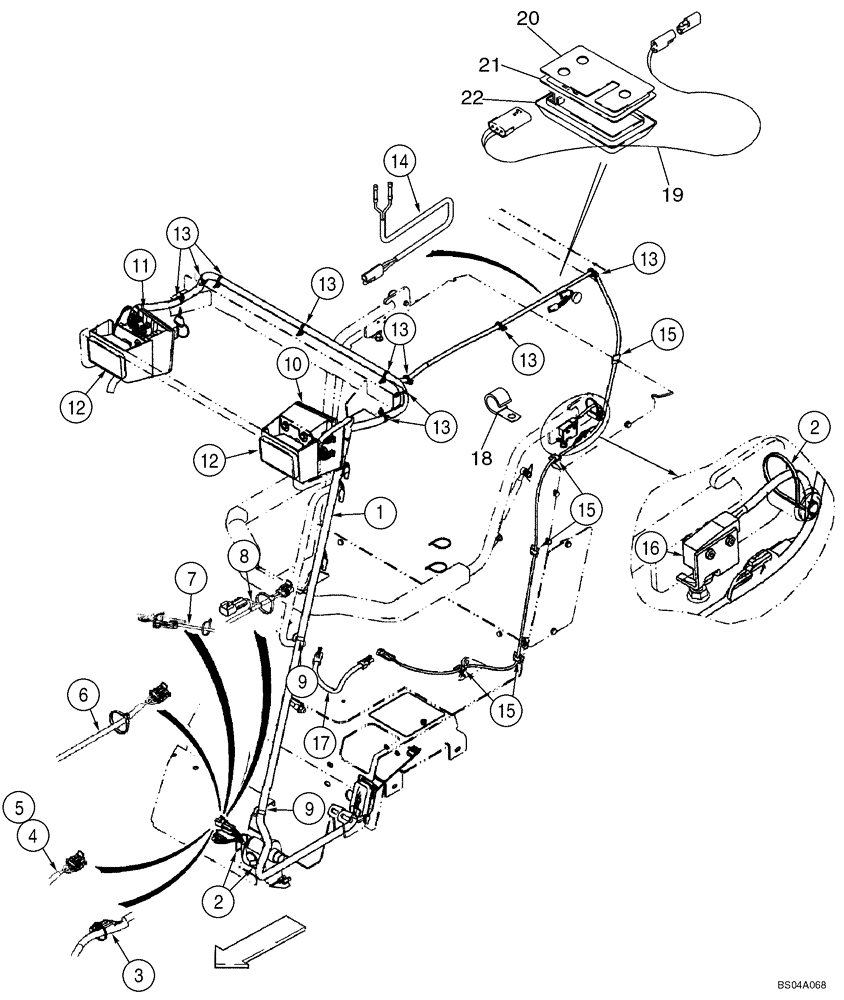

Запчасти Case 70XT (04-08) - HARNESS - CAB, MAIN (04) - ELECTRICAL SYSTEMS

1

373664A5

HARNESS

Cab

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

3шт.

3

375634A4

HARNESS

See Figure 04-10, Models With Cab Options

1шт.

4

398374A2

HARNESS

Front Door Switch; See Figure 04-17; Models With Lexan

1шт.

5

L71879

DIODE ELEMENT,400V, 3A

4шт.

6

398298A2

HARNESS

Front Door; See Figure 04-17; Models With Glass

1шт.

7

396940A1

HARNESS

Models With Deluxe Heater; See Figure 04-16

1шт.

8

389135A1

HARNESS

Models With Foot Heater; See Figure 04-16

1шт.

9

378884A2

STRAP,254mm L

3шт.

10

389971A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Left Hand Standard; See Figure 04-26

1шт.

389971A1R

REMAN-INSTR CLUSTER

60XT, 70XT

1шт.

389971A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

11

189492A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand Standard; See Figure 04-26

1шт.

11

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand Deluxe Models With Automatic Engine Shutdown; See Figure 04-31; Not Illustrated

1шт.

12

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Lamp Work; See Figure 04-27

2шт.

13

347610A1

ANCHOR

Strap

10шт.

14

293828A1

HARNESS

Models With Rotating Beacon; See Figure 04-25

1шт.

15

H439303

CLIP

4-5шт.

16

392269A2

SWITCH

Seat Bar; See Figure 04-15

1шт.

17

302137A2

HARNESS

Seat Switch; See Figure 04-15

1шт.

18

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

9.5 mm

1шт.

19

324882A1

HARNESS

Dome Light

1шт.

20

322783A1

HOLDER

Dome Light Mount

1шт.

21

430975A2

SEAL

Dome Light

1шт.

22

325271A1

COURTESY LIGHT

DOME LIGHT

1шт.
