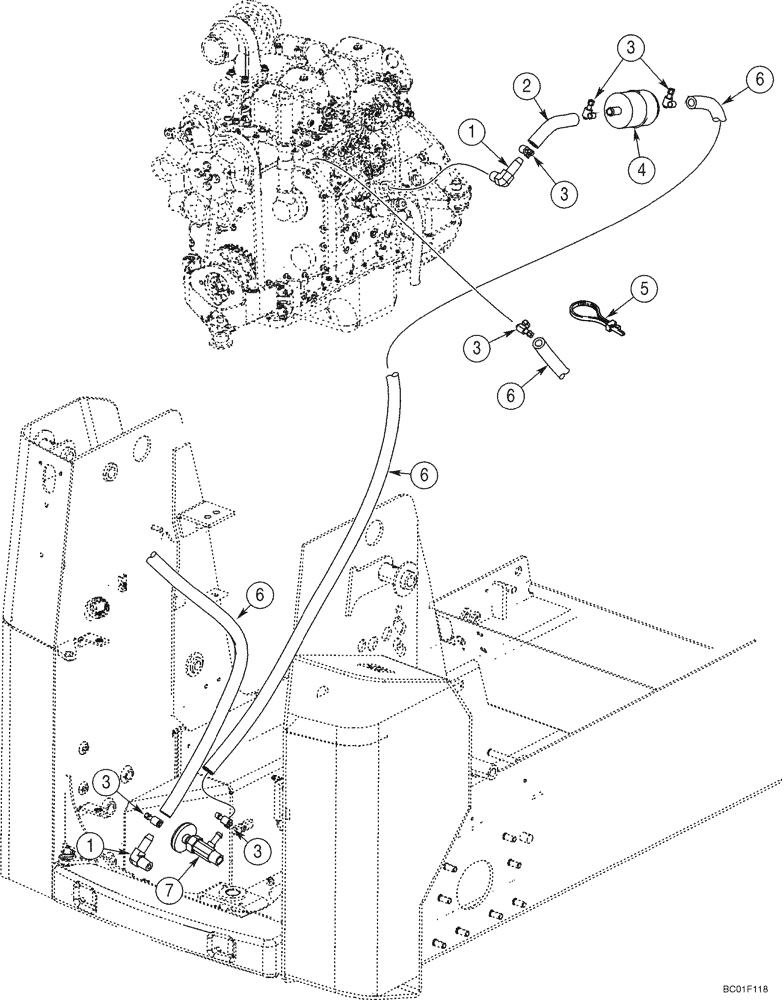

Запчасти Case 70XT (03-02) - FUEL LINES, 70XT (03) - FUEL SYSTEM

1

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 Barb x 1/4 PT

2шт.

2

D138967

FUEL HOSE

80 mm (3-1/4 in.); Cut From A21561X

1шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

4

D139225

FILTER, FUEL

In-Line

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

1шт.

6

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in.); If Used

2шт.

6

87421671

FUEL HOSE,9.53 mm ID x 850.00 mm, SAE 30R6

Replaces H439168

2шт.

446149A1

PROTECTIVE COVER

Used on Hose 87421671

1шт.

7

H434805

VALVE

For Additional Fuel Shut Off Valve For Models With High-Flow Hydraulics, See Figure 08-26, Ref 22, 23, 24

1шт.
