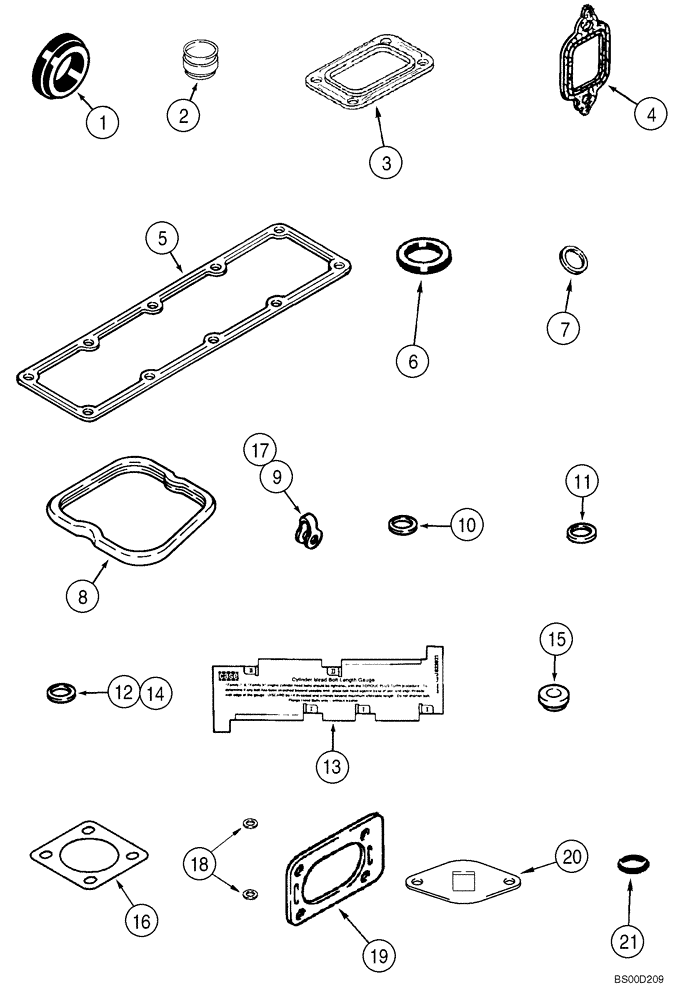

Запчасти Case 70XT (02-26) - GASKET KIT (02) - ENGINE

REF

INSTRUCTION

4-390/4T-390 Emissions Certified Engine

1шт.

REF

INSTRUCTION

Valve Grind; Note: When The Valve Grind Gasket Kit Is Used, Also Order The Required Cylinder Head Gasket, Figure 02-18

1шт.

87434406

GASKET

Incl. 1 - 21; Replaces A77975, 87405727

1шт.

1

J923331

GASKET

See Figure 02-18, Ref 11

1шт.

2

87433962

SEAL

See Figure 02-19, Ref 8, 8A; Replaces J921640

8шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-14, Ref 5

1шт.

4

J927154

GASKET,0.38mm Thk

Exhaust; See Figure 02-13, Ref 2, 10

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Intake; See Figure 02-13, Ref 7, 15

1шт.

6

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

See Figure 02-09, REF 23; 02-11, Ref 23

1шт.

7

J900808

SEAL

Not Used In This Application

4шт.

8

J930906

GASKET

See Figure 02-18, Ref 4

4шт.

9

J903380

SEAL

See Figure 03-07, Ref 21; 03-06, Ref 7

5шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm, See Figure 03-05, Ref 7; 03-06, Ref 10; 03-11, Ref 3; Replaces J906659

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-11, REF 2

4шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm, Not Used In This Application

4шт.

13

87404692

GAUGE

Replaces J823921

1шт.

14

J930324

SEAL

0.5 mm, Not Used In This Application

4шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-18, Ref 5

4шт.

16

J912220

GASKET,0.4mm Thk

See Figure 02-03, Ref 10

1шт.

17

J903380

SEAL

See Figure 03-06, Ref 7; 03-10, Ref 21

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Figure 03-08, Ref 9

2шт.

19

J914856

GASKET,1.02mm Thk

Not Used In This Application

1шт.

20

J937706

GASKET,0.79mm Thk

See Figure 02-14, Ref 10

1шт.

21

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Used In This Application

4шт.
