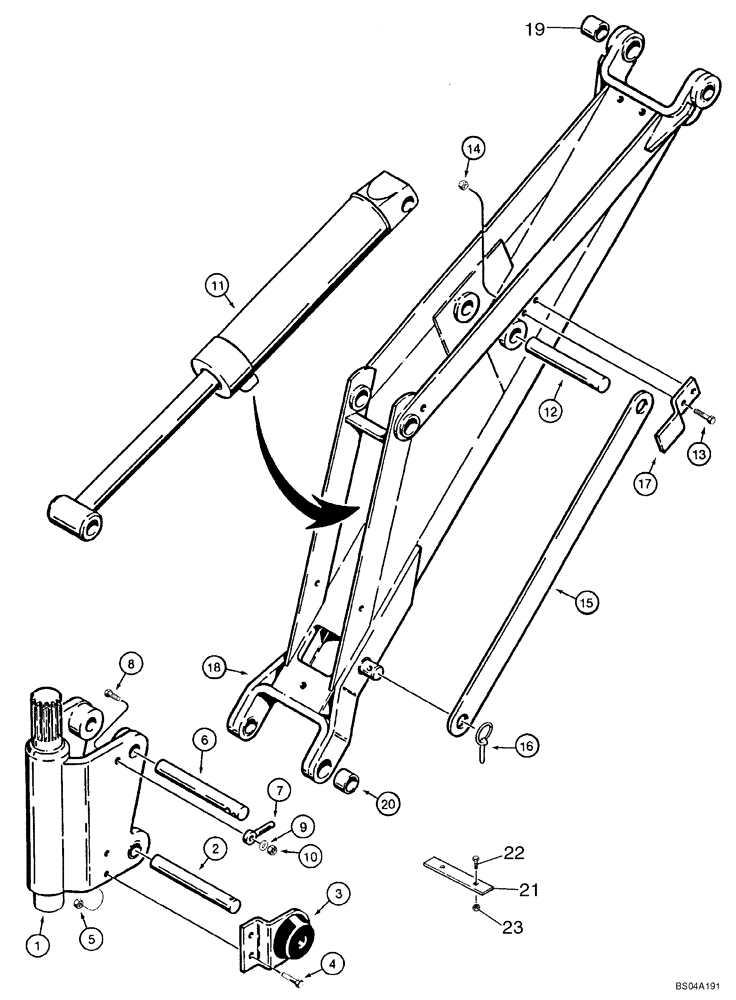

Запчасти Case 70XT (09-42) - BACKHOE - SWING TOWER AND BOOM (D100) (09) - CHASSIS

1

H672641

POST

Swing; Backhoe; See Figure 09-55

1шт.

2

H50526

PIN

Boom Pivot; Boom To Swing Tower

1шт.

3

H625756

BRACKET

Pin Retainer And Swing Cushion

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

5

230-4218

LOCK NUT,1/2"-13, GA

4шт.

6

H56945

AXLE PIN

Boom Cylinder Rod End

1шт.

7

H313981

PIN

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

10

232-4116

NUT,3/8"-16, GC

1шт.

11

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3 (76) ID x 14-5/8 in (372 mm) stroke; Boom; See Figure 08-41

1шт.

12

H50690

AXLE PIN,28.57mm OD x 171.45mm L

Closed End Of Boom Cylinder To Boom

1шт.

13

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

14

232-4116

NUT,3/8"-16, GC

4шт.

15

H56952

DRAG LINK

Transport

2шт.

16

A30338

PIN

2шт.

17

H60616

AXLE PIN

2шт.

H514620

BOOM

Incl. 19, 20

1шт.

18

NSS

NOT SOLD SEPARAT

Boom

1шт.

19

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

20

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

Boom Pivot

2шт.

21

H434415

BRACKET

Hose Mounting

1шт.

22

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

23

230-4214

LOCK NUT,1/4"-20, GA

2шт.
