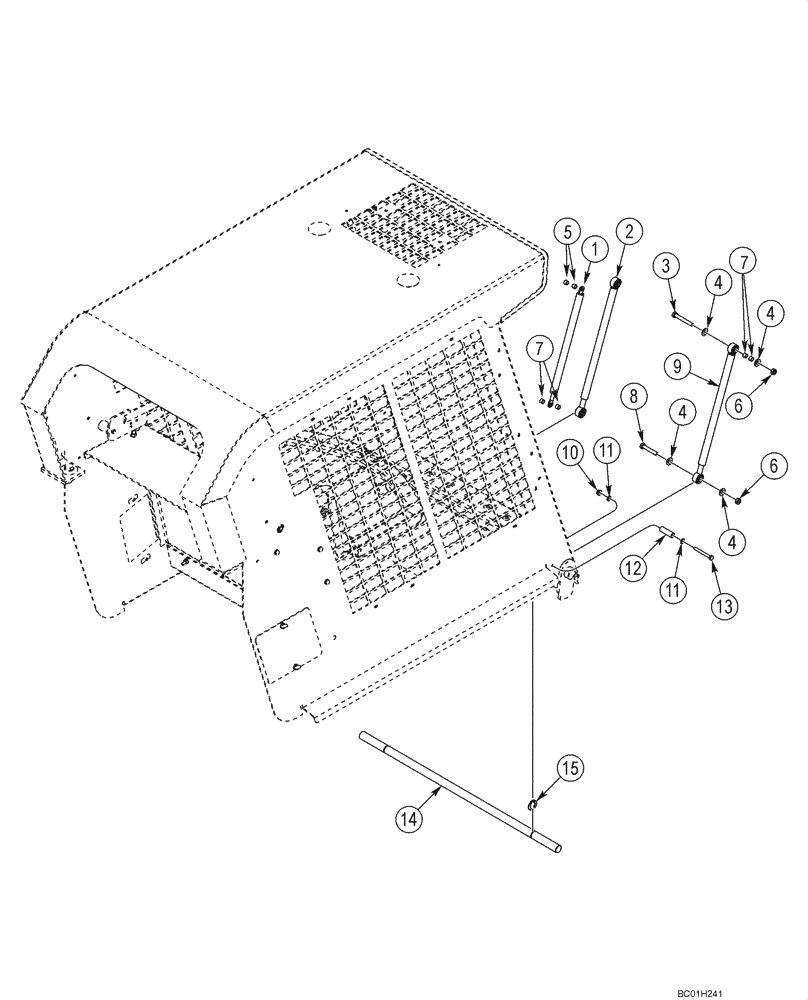

Запчасти Case 70XT (09-28) - CANOPY, ROPS - LATCH AND PIVOT, FRONT (09) - CHASSIS

1

376669A1

GAS STRUT

266.7 strk; Left Side; Models Without Deluxe Heater; Doors and Windows

1шт.

1

222490A2

GAS STRUT

235 strk; Left Side; European Models

1шт.

2

282002A2

GAS STRUT

Left Side; Models with Deluxe Heater; Models with Doors and Side Windows

1шт.

3

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

5

254698A1

SPACER

2шт.

6

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

7

254697A1

SPACER

North American Models

4шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

282002A2

GAS STRUT

Right Side; North America and Europe

1шт.

10

832-41408

NUT,M8 x 1.25, Cl 10

M8; 10

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

391449A1

SPACER

1шт.

13

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

14

373836A1

PIVOT PIN

Pivot

1шт.

15

827695C1

CIRCLIP

1 in

2шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.
