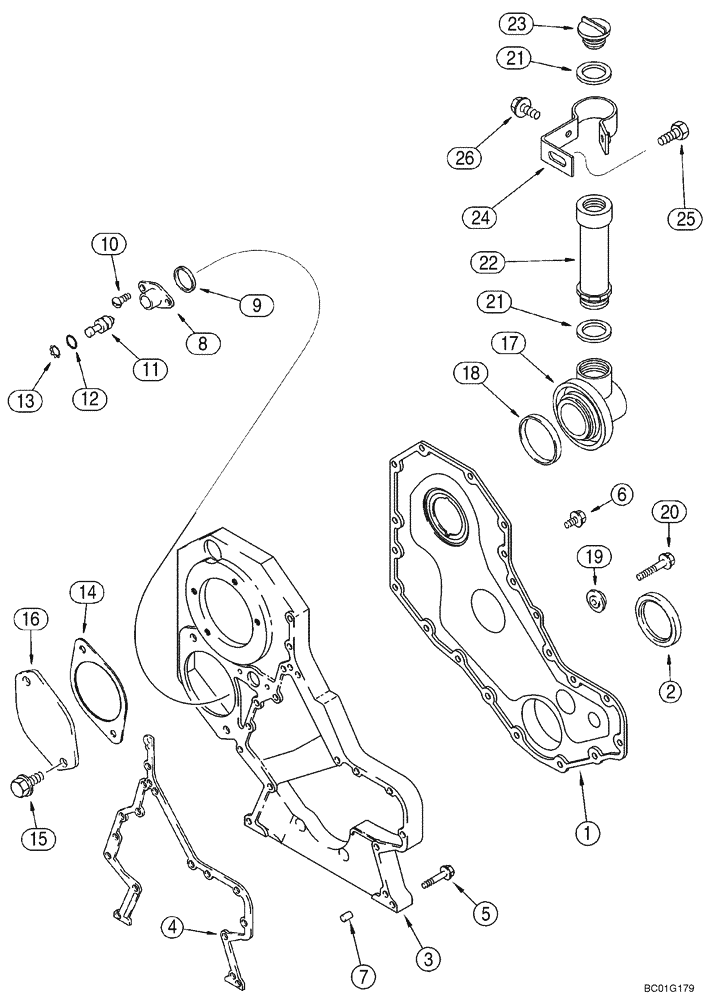

Запчасти Case 70XT (02-12) - FRONT GEAR COVER, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J935583

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal; Order A77889, A77890; See Figure 02-23

1шт.

J823494

SEALANT

3 oz, Not Illustrated

1шт.

3

J991069

TRANSMISSION HOUSING

Replaces J936257; If Used

1шт.

3

87423035

COVER

Replaces J991069; If Used

1шт.

4

J938156

GASKET,0.79mm Thk

1шт.

5

J926863

FLANGE BOLT

M8 x 50; Replaces 845-8050

10шт.

6

J924962

FLANGE BOLT

M8 x 16

13-16шт.

7

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

8

J919683

HOUSING

1шт.

9

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

10

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

11

J903924

PIN,18.87mm OD x 55mm L

1шт.

12

J913994

O-RING

1шт.

13

100-2587

SNAP RING,0.875", Int, #87

1шт.

14

J929751

GASKET

1шт.

14

J938655

GASKET,1.27mm Thk

Replaces J929751

1шт.

15

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

16

J914868

COVER

1шт.

17

J921644

ADAPTER

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

19

J912772

RETAINER

1шт.

20

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

Replaces 845-8060, M8 x 60

1шт.

20

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65

1шт.

21

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

2шт.

22

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

23

J901895

CAP

1шт.

24

J918182

CLAMP,38mm ID

1шт.

25

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

26

615-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.
