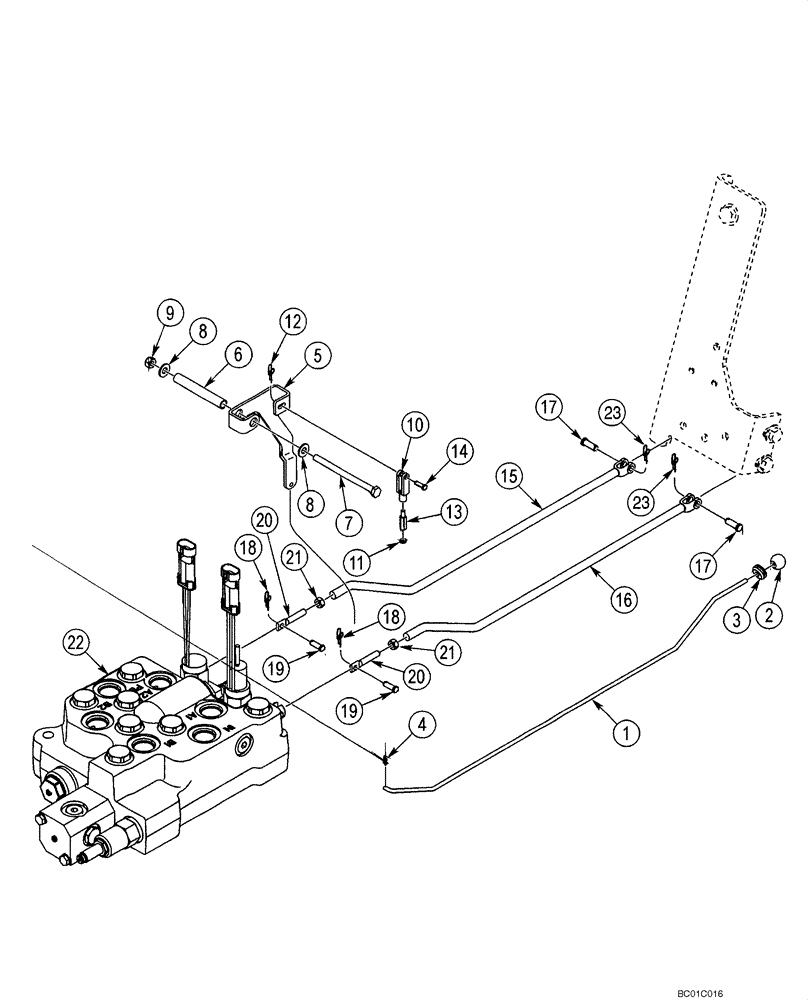

Запчасти Case 70XT (09-15) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS

REF

INSTRUCTION

Right Hand Control Frame To Loader Valve

1шт.

1

395746A2

ROD

Used On 60XT; Loader Valve Override

1шт.

1

395769A1

ROD ASSY.

Used On 70XT; Loader Valve Override

1шт.

2

388609A1

BALL KNOB

1шт.

3

248-2368

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

1шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

5

405203A3

CRANK

1шт.

6

388606A3

SPACER

1шт.

7

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

9

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

10

213-124

ADJUSTABLE CLEVIS,1/4"-28

1шт.

11

225-14210

NUT,#10-32

1шт.

12

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

13

405204A1

SPACER

Used On 60XT; Loader Lock Override

1шт.

13

405205A1

SPACER

Used On 70XT; Loader Lock Override

1шт.

14

427-4077

CLEVIS PIN,1/4" x .770"

1шт.

15

405250A1

ROD

Used On 60XT; Bucket Control; Models Without Dual Self Level; See Figure 08-03

1шт.

15

405438A2

ROD

Used On 70XT; Bucket Control; Models Without Dual Self Level; See Figure 08-04

1шт.

16

405251A1

ROD

Used On 60XT; Loader Control

1шт.

16

405437A2

ROD

Used On 70XT; Loader Control

1шт.

17

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

18

417860A1

COTTER PIN

2шт.

19

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

20

405247A1

STUD

Models Without Dual Self Level; See Figure 08-03, 08-04

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

REF

INSTRUCTION

Loader Control Valve; See Figure 08-13

1шт.

23

417861A1

RING

2шт.
