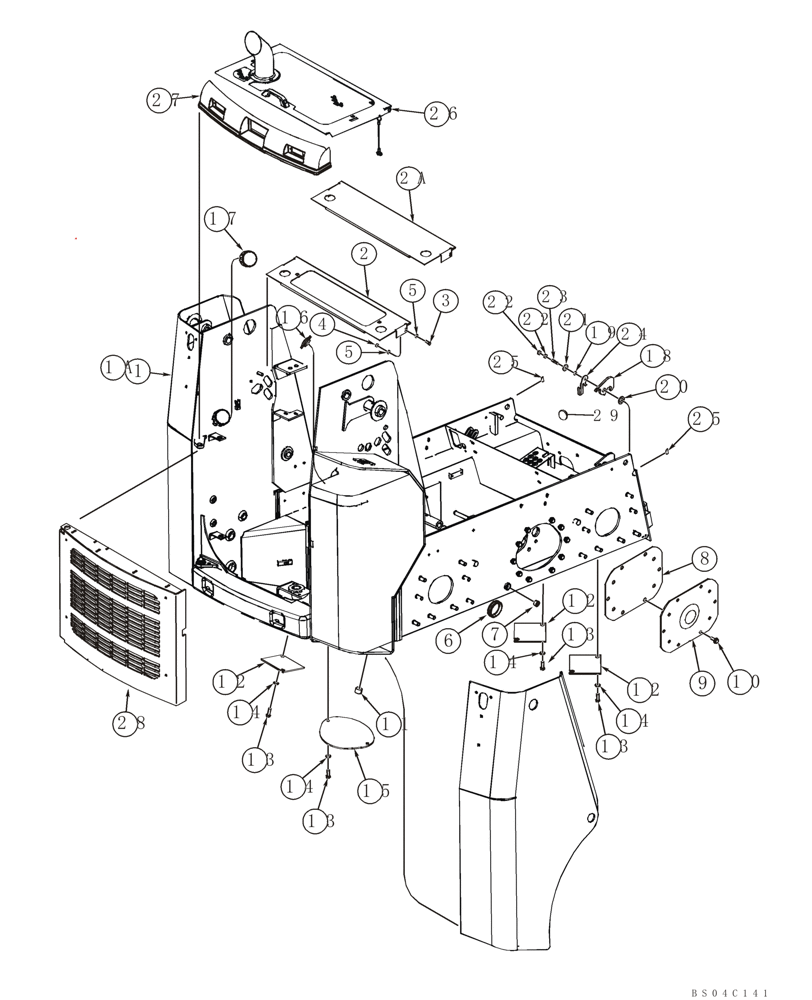

Запчасти Case 70XT (09-10) - CHASSIS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
383931A4
Used On 60XT; Machinery Item, For Service Order 434797A1; Incl. D88429
1шт.
383933A4
Used On 70XT; Machinery Item, For Service Order 434861A1; Incl. D88429
1шт.
D88429
CAGE
14-16шт.
254799A1
STUD
Axle Studs; Use Nut 86512498; Not Shown
32шт.
1
434797A3
CHASSIS
Chassis; Incl. 11; Also Incl. Parts On Figure 04-06 (Ref 11- 14); 07-03 (Ref 2); 09-10 (Ref 16, 17)
1шт.
1a
434861A3
CHASSIS
Chassis; Incl. 11; Also Incl. Parts On Figure 04-06 (Ref 11- 14); 07-03 (Ref 2); 09-10 (Ref 16, 17)
1шт.
2
411940A1
PANEL
North American Models; Heat Shield Extension
1шт.
2a
431742A1
PANEL
European Models; Heat Shield Extension
1шт.
3
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
4
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
Replaces 832-41308
2шт.
5
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
6
220061A2
PLUG
3 in.; Axle Access
4шт.
7
217-494
DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF
3/4 PT
2шт.
8
387305A1
GASKET
Chain Tank; If Used
2шт.
9
387091A1
LARGE PLATE
PLATE, LARGE Chain Tank
2шт.
10
857-12030
BOLT,Hvy Hex, M12 x 30mm, Cl 10.9
20шт.
12
H436914
LARGE PLATE
PLATE, LARGE Cover
3шт.
13
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
8шт.
14
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
8шт.
15
365817A1
COVER
1шт.
16
H436887
CAP
Fuel Filler; Models Without Locking Cap
1шт.
16
108925A1
FILLER CAP
Fuel Filler; Bumper; Rear; See Figure 09-22
1шт.
17
257448A1
CAP
Oil Filler; Incl. 292259A1
1шт.
292259A1
SEAL
Filler Cap
1шт.
18
390516A3
LATCH
ROPS Latch
1шт.
19
278332A1
SPRING WASHER
1шт.
20
495-11081
WASHER,3/4", SAE
1шт.
21
294967A1
WASHER
1шт.
22
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
23
294943A1
STUD
1шт.
24
294911A2
HOOK
1шт.
25
394748A1
INSULATION
Models With Heater
2шт.
26
NSS
NOT SOLD SEPARAT
Hood; Engine; See Figure 09-18
1шт.
27
385490A1
DOOR COVER
1шт.
28
NSS
NOT SOLD SEPARAT
Door Assy; See Figure 09-19
1шт.
29
299274A2
COVER,35mm OD
35 mm dia.
6шт.
Выбрано товаров: 37
