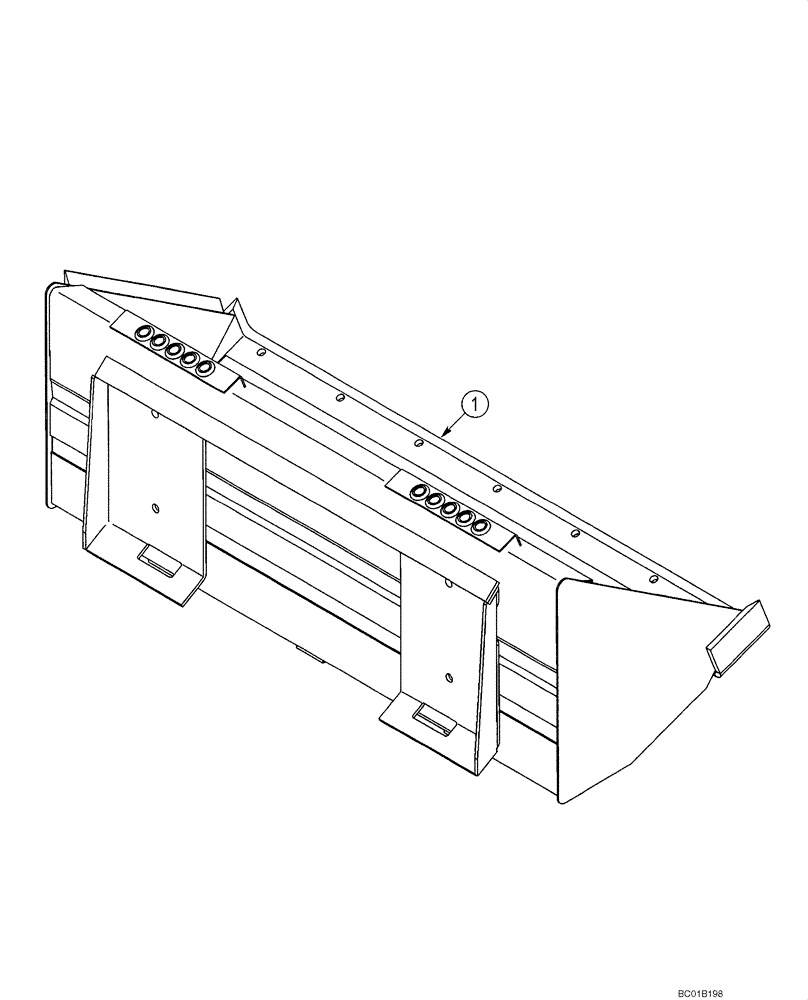

Запчасти Case 70XT (09-05) - BUCKETS - LOADER (DIRT/FOUNDRY) (09) - CHASSIS

REF

INSTRUCTION

Dirt/Foundry

1шт.

1

86618349

BUCKET

1524 mm (60 in.); Order From Machinery Price List

1шт.

1

190073A2

1524 mm (60 in.); Order From Machinery Price List

1шт.

1

86618350

BUCKET

1676 mm (66 in.); Order From Machinery Price List

1шт.

1

190075A2

1676 mm (66 in.); Order From Machinery Price List

1шт.

1

86618351

BUCKET

1829 mm (72 in.); Order From Machinery Price List

1шт.

1

86633060

BUCKET

1981 mm (78 in.); Order From Machinery Price List

1шт.

450941A1

KIT

Bucket Reinforcement Kit; Incl. 2 - 4 And Instructions; Not Illustrated; For Use With Buckets 86618349 - 86618355, 86618357 - 86618361, 86618363, 86618364

1шт.

2

9822175

PLATE

Lower Support; Not Illustrated

2шт.

3

448481A1

BAR

Upper Support, Long; Not Illustrated

6шт.

4

448610A1

BAR

Upper Support, Short; Not Illustrated

6шт.
