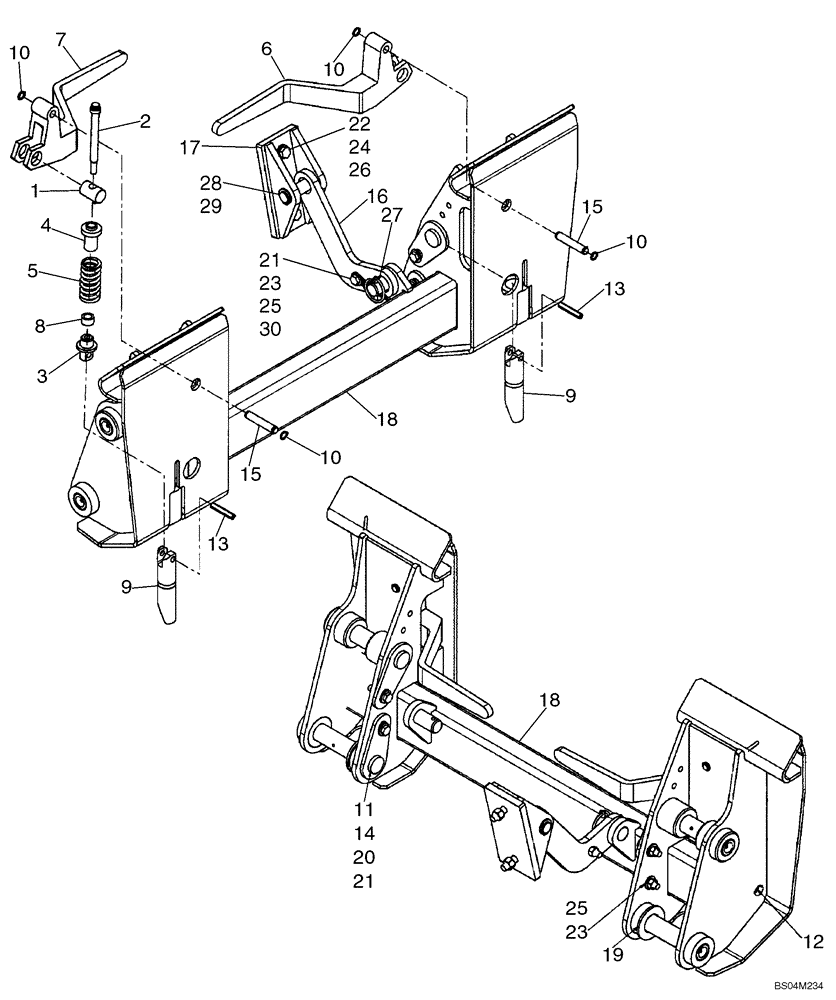

Запчасти Case 70XT (09-03A) - COUPLER, MECHANICAL (ITALIAN) (09) - CHASSIS

1

9829733

PIN,25.4mm OD x 39mm L

2шт.

2

86506112

12 PT SCREW,3/8" - 16 x 5" L

.5 x 4

2шт.

3

86510869

PIN,22.20mm OD x 43.6mm L

2шт.

4

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

5

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

6

86633195

HANDLE

Left Hand

1шт.

7

86633196

HANDLE

Right Hand

1шт.

8

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Spacer

2шт.

9

87413030

PIN

Latch Pin; If Used

2шт.

9

87758365

PIN,31.75mm OD x 142.3mm L

Latch Pin

2шт.

10

100-1650

SNAP RING,#50, Ext

4-2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

13

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

2шт.

14

87659406

PIN,31.75mm OD x 169.2mm L

Replaces 394582A2

4шт.

15

87387540

PIN,12.7mm OD x 67.55mm L

Replaces 395968A1; Handle Pivot

2шт.

16

398194A1

LINK

Bucket Lock; If Used

2шт.

16

84141396

LINK

Red Bucket Lock; If Used

2шт.

17

398196A1

BRACKET

Bucket Lock

2шт.

18

417779A2

FRAME ASSY

Coupler, Italian On Road

1шт.

19

495-11138

WASHER,1 1/4", SAE

1.375 x 2.5 x .165 in

2шт.

20

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8

4шт.

21

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

22

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

23

832-41410

NUT,M10 x 1.5, Cl 10

6шт.

24

832-41412

NUT,M12 x 1.75, Cl 10

M12

4шт.

25

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

10шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

27

A30338

PIN

2шт.

28

D71829

SNAP RING,#87, Ext

4шт.

29

D138889

PIN,69.98mm OD x 160mm L

Lift Cylinder Pivot

2шт.

30

L78786

CABLE RETAINER

2шт.
