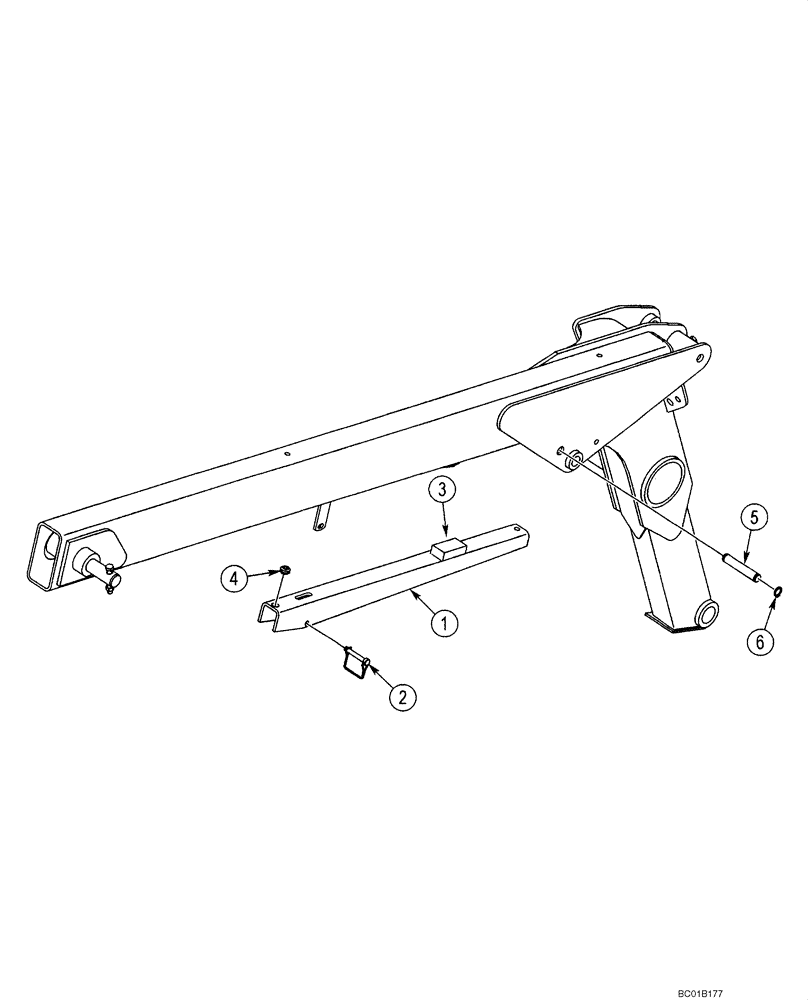

Запчасти Case 70XT (09-02) - SUPPORT - LOADER FRAME (09) - CHASSIS

1

405858A2

STRUT

If Used; ; 60XT(NA) BSN JAF0350356, 60XT(EU) BSN JAF0350743, 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854

1шт.

1

449433A1

STRUT

If Used; Not Illustrated; ; 60(NA) ASN JAF0350357, (EU) ASN JAF0350744; 70(NA) ASN JAF0371244, (EU) ASN JAF0351855

1шт.

2

87711364

PIN,9.53mm OD

Replaces 407108A1

1шт.

3

406623A2

PAD

Loader Strut

1шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

5

405854A1

PIN

1шт.

6

103-1675

SNAP RING,#75, .750, Ext

2шт.
