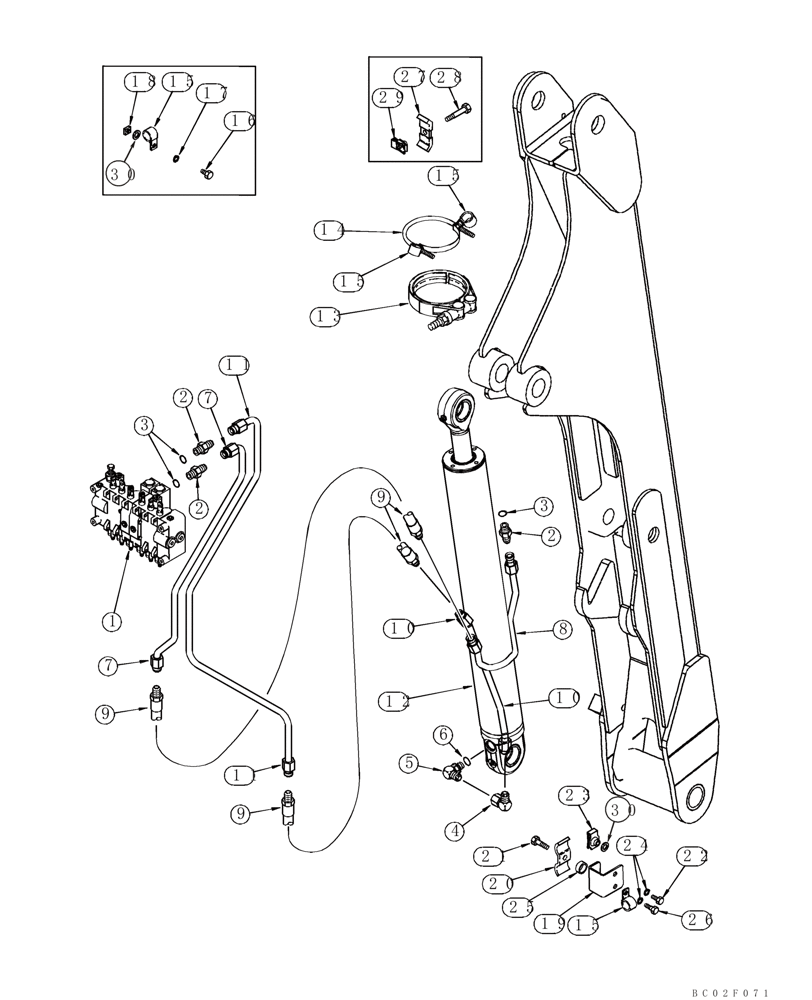

Запчасти Case 70XT (08-43) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (D125) (08) - HYDRAULICS

REF

INSTRUCTION

D125 BACKHOE

1шт.

1

H674500

VALVE

Control; Backhoe; See Figure 08-48 - 08-50

1шт.

1

87400034

VALVE

Control; Backhoe; See Figure 08-48 - 08-50

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

256130A1

TUBE,506, 198 mm Length

Rod End

1шт.

8

256820A3

TUBE,343, 110 mm Length

Rod End

1шт.

9

256930A1

HOSE ASSY.

2300 mm (90-1/2 in)

2шт.

10

256816A3

TUBE,12 mm ID, 360 mm Length

Closed End

1шт.

11

256132A1

TUBE,675, 290 mm Length

Closed End

1шт.

12

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

76 ID x 551 mm strk; Boom; See Figure 08-52

1шт.

13

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

14

304650A1

CLAMP

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3/4 ID

8шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

19

255013A1

SUPPORT

2шт.

20

A12032

CLAMP

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

H346650

NUT

2шт.

24

492-11031

LOCK WASHER,5/16"

10шт.

25

304086A1

SPACER

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

H45476

CLAMP

2шт.

28

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

29

H346650

NUT

4шт.

30

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

6шт.
