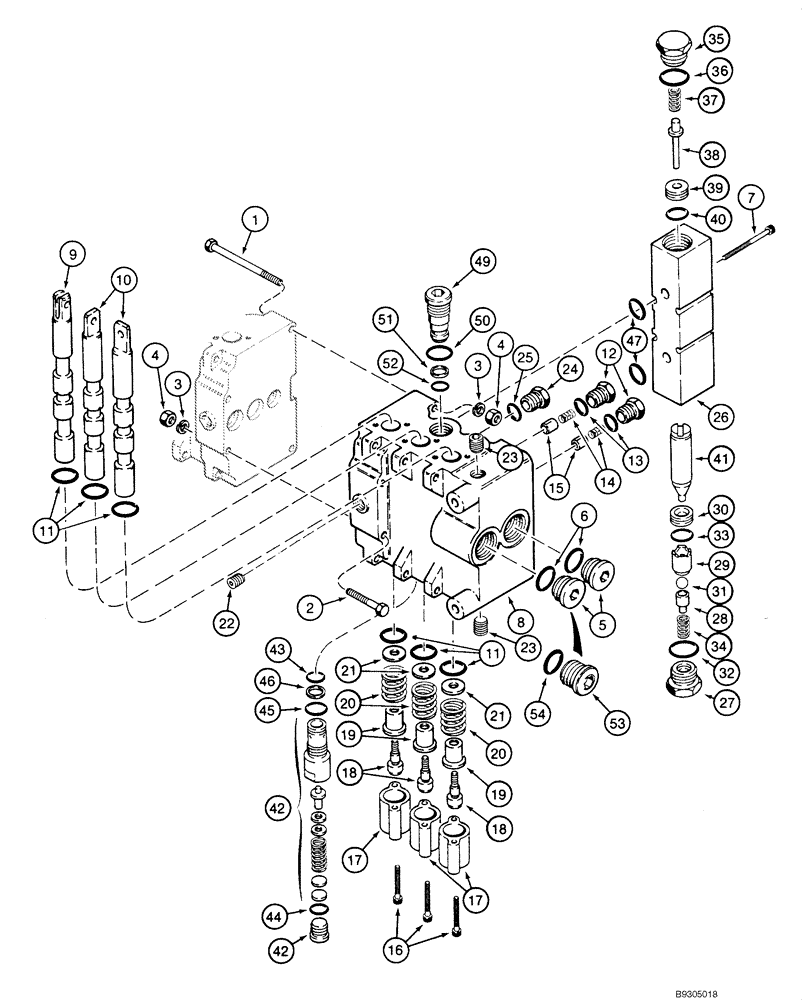

Запчасти Case 70XT (08-39) - VALVE, CONTROL - BACKHOE (D100) (08) - HYDRAULICS

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-37 - 08-39; No Longer Available, Order 87400023

1шт.

87400023

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-37 - 08-39

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

4

425-114

NUT,1/4"-28, G5

4шт.

5

86625138

PLUG,7/18" - 14

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674528

HYD VALVE SECTION

Outlet; No Longer Available, Order 87407875

1шт.

87407875

HYD VALVE SECTION

Outlet

1шт.

8

NSS

NOT SOLD SEPARAT

Body; Outlet Section

1шт.

9

NSS

NOT SOLD SEPARAT

Spool; Stabilizer

1шт.

10

NSS

NOT SOLD SEPARAT

Spool; Dual Control

2шт.

11

H438030

O-RING

6шт.

H438024

SET

Load Check; No Longer Available, Order 87407876

2шт.

87407876

KIT

Load Check

2шт.

12

H438231

PLUG

Incl. 13

1шт.

14

NSS

NOT SOLD SEPARAT

Spring; Poppet

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet; Load Check

1шт.

H438021

SET

Spring Centering

3шт.

16

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

17

NSS

NOT SOLD SEPARAT

Cap

1шт.

18

NSS

NOT SOLD SEPARAT

Bolt

1шт.

19

NSS

NOT SOLD SEPARAT

Spacer

1шт.

20

N9539

TENSION SPRING

1шт.

21

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

22

H438960

PLUG

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Replaces 221-841

1шт.

24

H438231

PLUG

Load Check

1шт.

100405A2

BLOCK ASSY.

Pilot Check; Incl. 26-41

1шт.

26

NSS

NOT SOLD SEPARAT

Body; Pilot Check

1шт.

27

H438031

PLUG

Pilot Check

1шт.

28

H438032

SLEEVE VALVE

Pilot Check

1шт.

29

H438033

CUP

Check Ball

1шт.

30

113746A1

SEAT

Pilot Check

1шт.

31

113748A1

BALL

Pilot Check

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

102712A1

SPRING

Pilot Check

1шт.

35

113751A1

PLUG

Pilot Check

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

113747A1

SPRING

Poppet

1шт.

38

H438334

VALVE

Cartridge

1шт.

39

113750A1

SEAT

Poppet

1шт.

40

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

41

113749A1

PLUNGER

Pilot Check

1шт.

H674533

VALVE

Relief; Incl. 42

1шт.

42

NSS

NOT SOLD SEPARAT

Valve; Relief

1шт.

H674536

O-RING

Relief Valve; Incl. 43 - 46

1шт.

43

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

NSS

NOT SOLD SEPARAT

Ring

1шт.

47

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Check Assy

2шт.

48

H438039

LARGE PLATE

PLATE, LARGE Bottom Port Of Stabilizer Section; Not Illustrated

2шт.

H438954

PLUG

Body

1шт.

49

NSS

NOT SOLD SEPARAT

Plug; Body

1шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

51

H438339

GASKET

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

H438953

PLUG

3/4 in; Outlet Port; If Used

1шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

111935A1

SET OF PARTS

Plunger; Incl. 35 - 41

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
