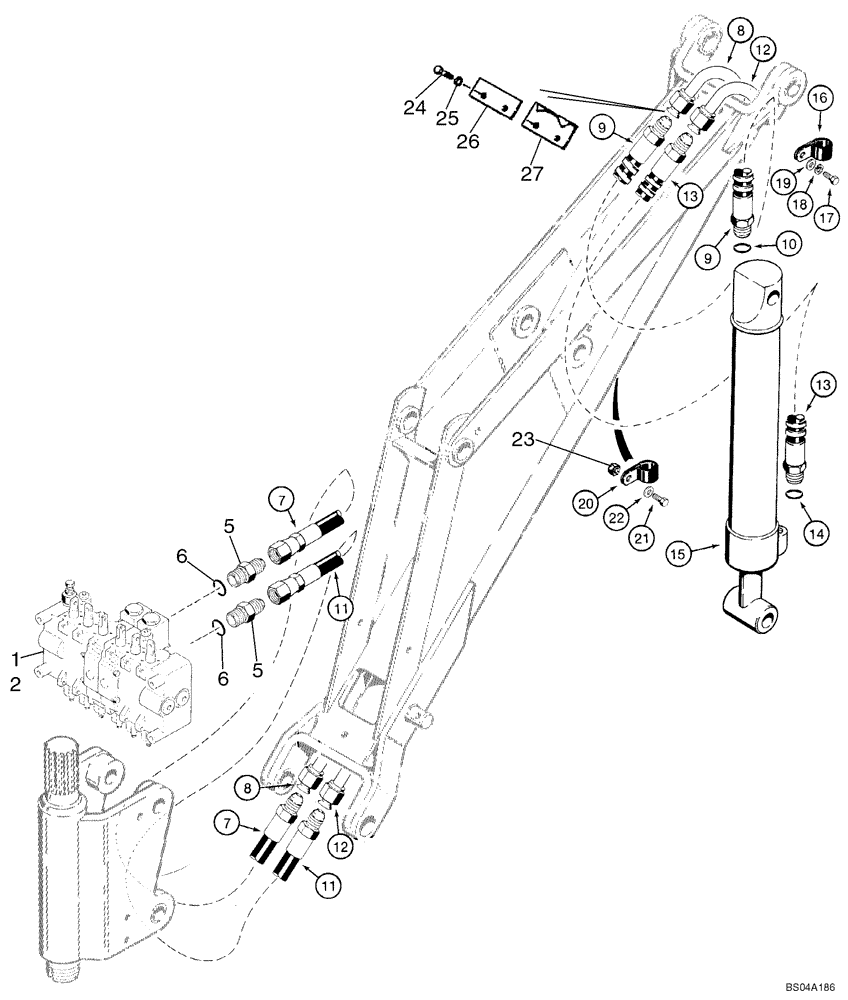

Запчасти Case 70XT (08-34) - HYDRAULIC SYSTEM - BACKHOE BUCKET CYLINDER (D100) (08) - HYDRAULICS

1

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-37 - 08-39

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; See Figure 08-37 - 08-39

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

O-ring boss; Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H434463

HOSE

1225 mm (48-1/4 in); To Closed End Of Bucket Cylinder

1шт.

8

H593376

TUBE,0.5" OD

Intermediate; To Closed End Of Bucket Cylinder

1шт.

9

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

At Closed End of Bucket Cylinder

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Use on Ref 9

1шт.

11

H434463

HOSE

1170 mm (46 in); At Control Valve To Rod End Of Bucket Cylinder; Replaces A167054

1шт.

12

H593384

TUBE,12.7 mm OD

Intermediate; To Rod End Of Bucket Cylinder

1шт.

13

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

At Rod End Of Bucket Cylinder

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Use on Ref 13

1шт.

15

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3 (76) ID x 14-5/8 in (372 mm); Bucket; See Figure 08-41

1шт.

16

H51763

CLAMP

Hose

2шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

492-11025

LOCK WASHER,1/4"

2шт.

19

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

20

H46888

CLAMP

Hose

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

H426775

WASHER

2шт.

23

230-4215

NUT,5/16"-18, GA

2шт.

24

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

492-11031

LOCK WASHER,5/16"

2шт.

26

H51755

CLAMP

1шт.

27

H61069

FLAP

1шт.
