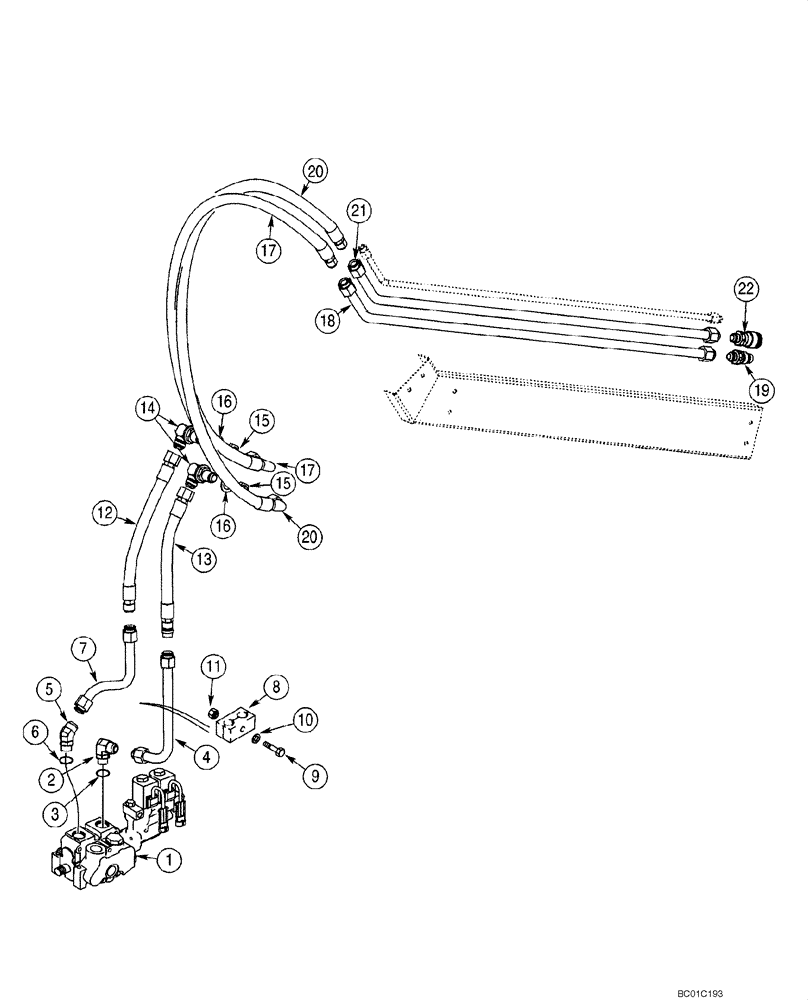

Запчасти Case 70XT (08-27) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

Valve To Couplings

1шт.

1

372194A2

VALVE

High Flow; See Figure 08-30

1шт.

2

430014A1

ELBOW

1 x 3/4; Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

392450A1

TUBE,25.4 mm OD

Front Port

1шт.

5

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj Or; Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

392448A1

TUBE

Rear Port

1шт.

8

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID

1шт.

9

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

12

392445A2

HOSE ASSY.

492 mm (19-3/8 in.); Rear Port

1шт.

13

392446A2

RADIATOR HOSE,422.00 mm

Front Port

1шт.

14

407923A1

FITTING

Bulkhead

2шт.

15

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

16

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

1-5/16 x 2 x 7/64

2шт.

17

407202A2

HOSE ASSY.

1385 mm (54-1/2 in.); High Flow Loop

1шт.

18

406931A1

TUBE

Supply

1шт.

19

395268A1

COUPLING

Male Quick Disconnect

1шт.

20

407201A2

HOSE ASSY.

1385 mm (54-1/2 in.)

1шт.

21

406929A1

TUBE

Supply

1шт.

22

395267A1

COUPLING

Female Quick Disconnect

1шт.
