Запчасти Case 70XT (08-20) - CYLINDER - LOADER LIFT, 60(NA) BSN JAF0350356, (EU) BSN JAF0350743; 70(NA) BSN JAF0371243, (EU) BSN (08) - HYDRAULICS

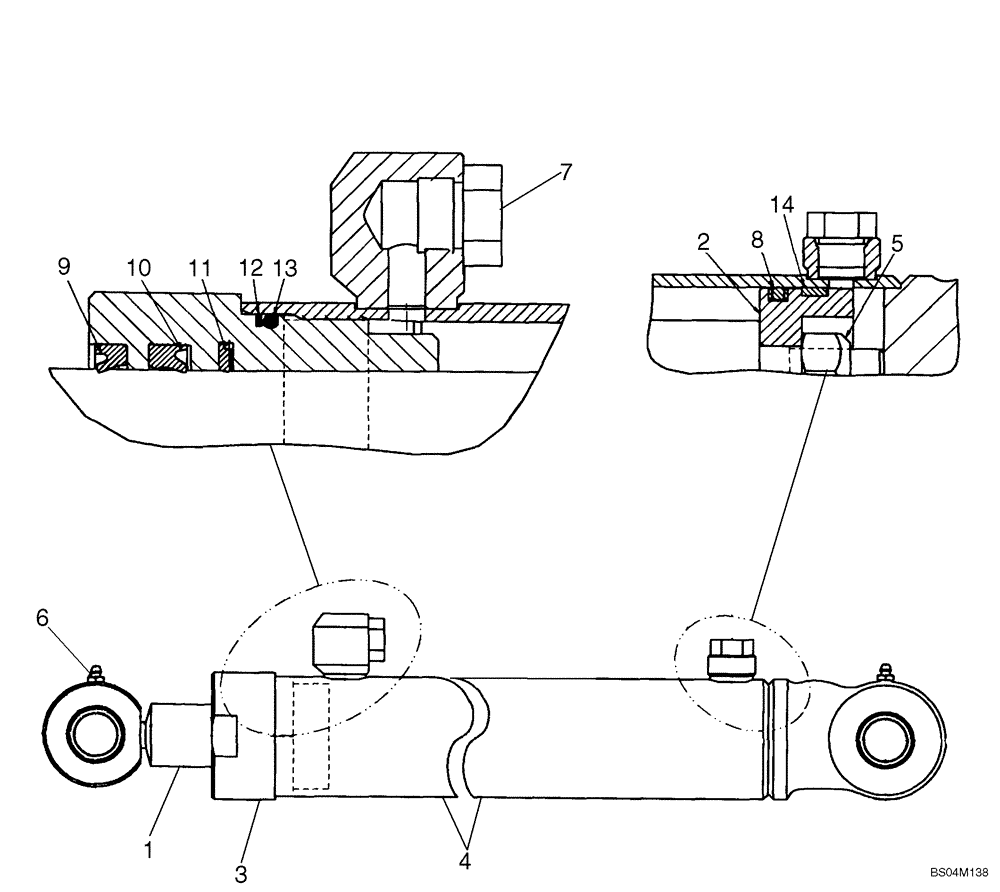

Схема запчастей Case 70XT - (08-20) - CYLINDER - LOADER LIFT, 60(NA) BSN JAF0350356, (EU) BSN JAF0350743; 70(NA) BSN JAF0371243, (EU) BSN (08) - HYDRAULICS
3
6
11
10
2
9
14
13
4
1
12
7
8
5

Артикул

Название

Примечание

Количество

86614638

CYLINDER ASSY.

2-1/2 x 35-7/8; 60XT(NA) BSN JAF0350356, 60XT(EU) BSN JAF0350743, 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854

2шт.

87705799R

REMAN-HYD CYLINDER

60XT BSN JAF0350356, 70XT BSN JAF0371243,

2шт.

87705799C

CORE-HYD CYLINDER

Return Number

1шт.

1

86611742

ROD

Piston, Incl. Bushings 86624451

1шт.

86624451

BUSHING

2шт.

2

848220

PISTON

1шт.

3

86631597

HEAD (CYLINDER)

2.5 x 1.25

1шт.

4

86611740

CYLINDER

Incl. Bushings 86624450

1шт.

86624450

BUSHING

2шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

214389

PLUG,3/4" - 16 ORB

1/2" OD Tube

2шт.

86631598

SEAL KIT

Seal, Incl. 8 - 14

1шт.

8

86563839

SEAL,53.34mm ID x 64.01mm OD x 6.99mm Thk

2.5

1шт.

9

86631610

WIPER SEAL,36.32mm ID x 50.95mm OD x 7.92mm Thk

1.5 Wiper

1шт.

10

86631607

SEAL,37.08mm ID x 52.58mm OD x 9.53mm Thk

1.5 Rod

1шт.

11

86631616

SEAL,37.85mm ID x 55.12mm OD x 3.12mm Thk

1.5 Buffer

1шт.

12

86512008

SEAL,60.89mm ID x 66.88mm OD x 1.27mm Thk

Backup

1шт.

13

52419

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

14

783874

WEAR RING,Split, 57.15mm ID x 63.5mm OD x 9.53mm Thk

1шт.

Выбрано товаров: 20
