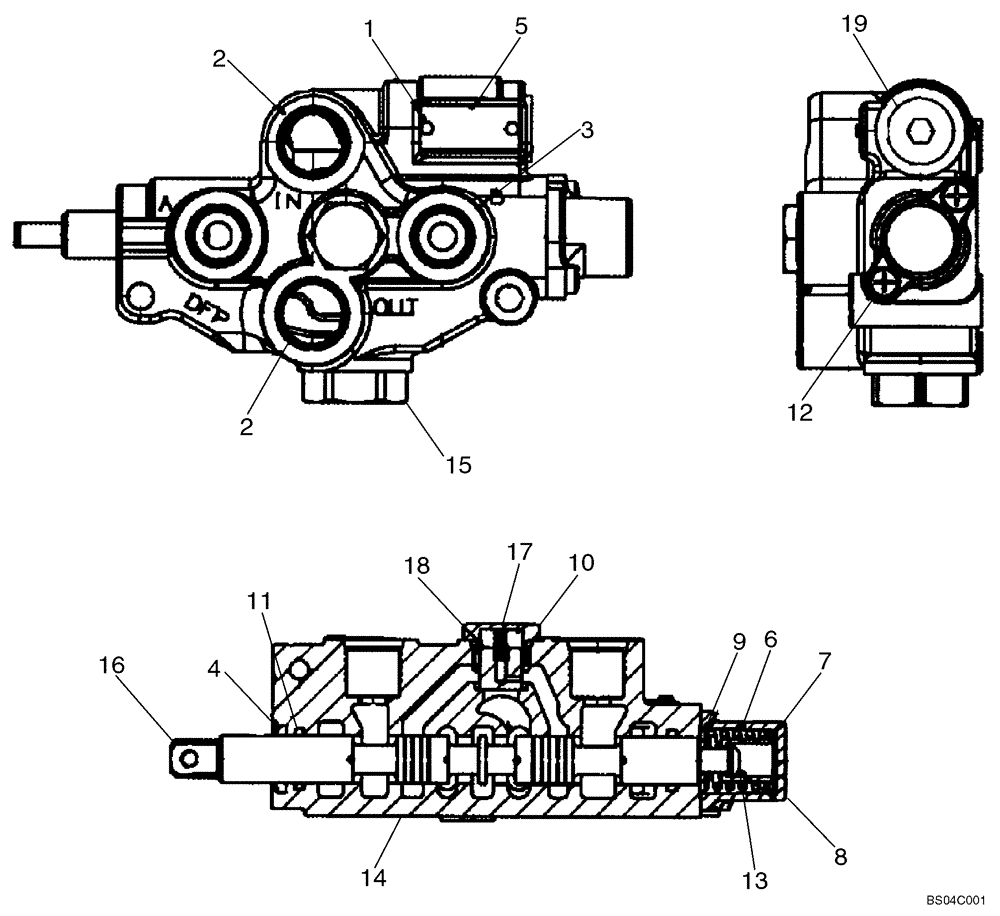

Запчасти Case 70XT (08-19A) - VALVE, CONTROL - AUXILIARY (08) - HYDRAULICS

87435245

VALVE

Control, Auxiliary; Incl. 1 - 19; Replaces H674465

1шт.

1

NSS

NOT SOLD SEPARAT

Screw, Drive

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

NSS

NOT SOLD SEPARAT

Plug

1шт.

4

H438926

WIPER SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

6

N9539

TENSION SPRING

1шт.

7

N9529

SEAT

1шт.

8

N9528

CAP

1шт.

9

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

10

87443166

TENSION SPRING

1шт.

11

H438030

O-RING

2шт.

12

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

With Lockwasher

2шт.

13

87443167

SCREW,Pan

1шт.

14

NSS

NOT SOLD SEPARAT

Body

1шт.

15

87443169

PLUG

1шт.

16

NSS

NOT SOLD SEPARAT

Spool

1шт.

17

87443171

PLUG

Load Check

1шт.

18

87443172

POPPET

Load Check

1шт.

19

87443173

PLUG

1шт.

87446578

KIT

Kit, Load Check; Incl. 12, 17, 18

1шт.

87446579

KIT

Kit, Spring Center; Incl. 6, 7, 9, 12, 13

1шт.
