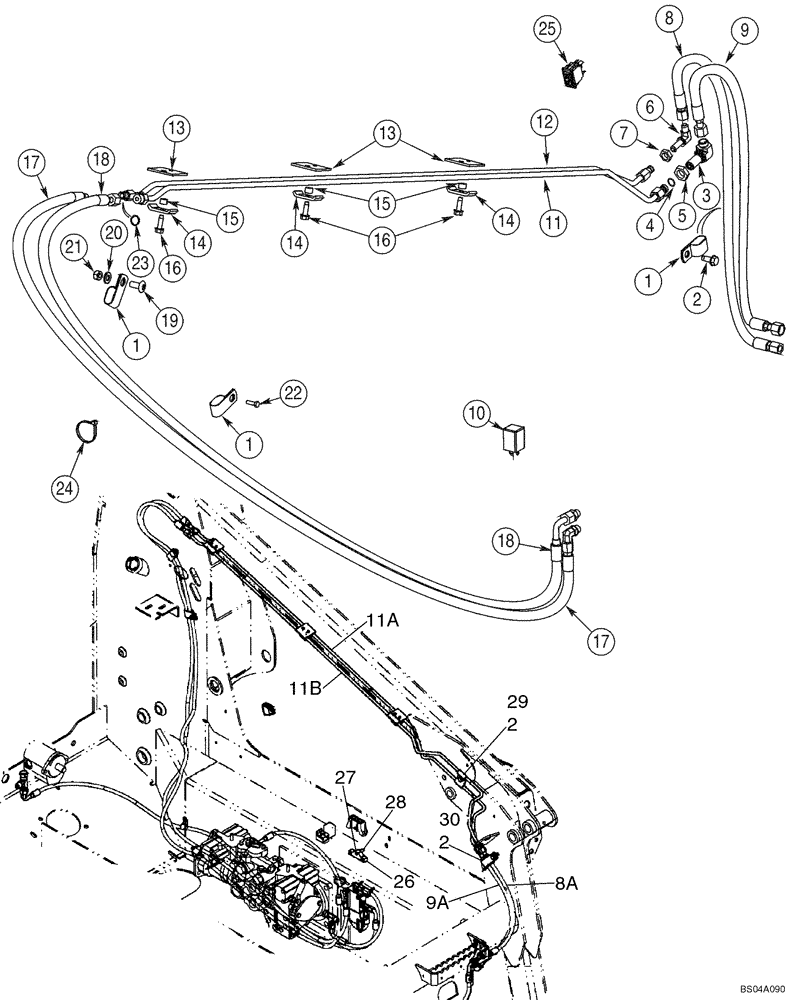

Запчасти Case 70XT (08-08) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

REF

INSTRUCTION

Valve to Bulkhead Bracket

1шт.

1

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

2-4шт.

2

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

3/8 x 7/8

2шт.

3

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Incl. 4

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

6

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

7

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

8

406899A1

TUBE ASSY.

1057 mm (41-5/8 in.); Loader, Serial Range: Arm-Step

1шт.

8a

444467A1

HOSE ASSY.

515 mm, 20.28 in.; Loader Arm To Step

1шт.

9

406896A1

TUBE ASSY.

1057 mm (41-5/8 in.); Loader, Serial Range: Arm-Step

1шт.

9a

444466A1

HOSE ASSY.

510 mm, 20.1 in..; Loader Arm To Step

1шт.

10

381990A2

RELAY

Sealed Time Delay; Chassis Options; See Figure 04-14

1шт.

11

406547A1

TUBE

1шт.

11a

444489A1

HYD TUBE

1шт.

11b

444491A1

HYD TUBE

1шт.

12

406549A1

TUBE

1шт.

12a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

406970A1

BAR

3шт.

14

H434900

CLAMP

Replaces R17319

3шт.

15

395545A1

SPACER

3шт.

16

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16 x 1

3шт.

17

406890A1

TUBE ASSY.

2665 mm (104-7/8 in); Valve to Loader Arm; See Figure 08-23

1шт.

18

406893A1

TUBE ASSY.

2791 mm (109-7/8 in); Valve to Loader Arm; See Figure 08-23

1шт.

19

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

1шт.

20

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

21

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

22

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

1шт.

25

379877A1

SWITCH

Hydraulic Coupler; See Figure 04-11

1шт.

26

107558C1

RESISTOR

25 Ohm; Attach to Left Hand Console; Attach To Chassis Option Harness

1шт.

27

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

32 x 1.5

1шт.

28

D122634

ISOLATOR,12.7mm OD x 14.1mm L

Mount, Isolator

1шт.

29

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Double, 22.2 Dia.

1шт.

30

86501706

CLAMP

Double Tube

1шт.
